Hifiverse

Integrated amplifiers — PrimaLuna EVO 300 Hybrid

Description, images, technical data and specifications

PrimaLuna EVO 300 Hybrid
Image source — © PrimaLuna

This is an updated model of the existing EVO 300 integrated circuit, although the difference between the models is not immediately apparent. The main difference lies in the "filling". The model just presented lacks the lamps of the amplifier's terminal stages, located in the second row behind the protective grille. But the six broadband dual triodes of the 12AU7 remained in place — there are no changes here.

Specifications

  • Model name

    EVO 300 Hybrid

  • Type

    Integrated Amplifier

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    5

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    34 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    100

  • Output power (4Ω) (W)

    150

  • Gain (dBu)

    37.2

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (dB)

    105

  • Total Harmonic Distortion + Noise (%)

    <0.2

  • Damping factor

    N/A

  • Dimensions (mm)

    405 x 385 x 205

  • Weight (kg)

    31

  • Official link

    https://www.primaluna.nl/hybrid/evo-300-hybrid-integrated-amplifier/

PrimaLuna EVO 100

More components

  • EVO 100

    Integrated amplifiers

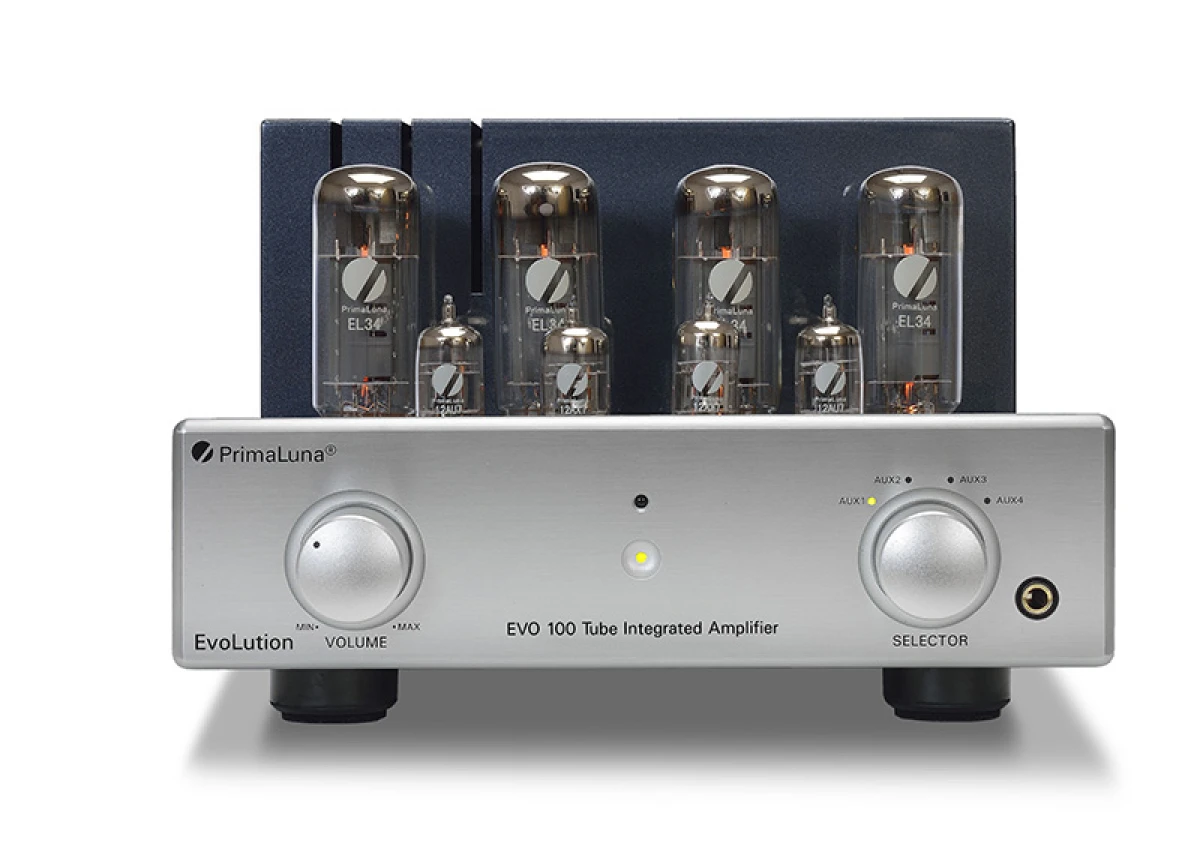

    PrimaLuna EVO 100

    The PrimaLuna EVO 100 Integrated is the youngest of the integrated amplifiers, which develops a power of 2 x 40 W on EL34 lamps (or 2 x 41 W on KT88 lamps). In headphone amplifier mode, the same output stage operates, and the voltage divider lowers the signal power to an acceptable level for headphones.

  • EVO 200

    Integrated amplifiers

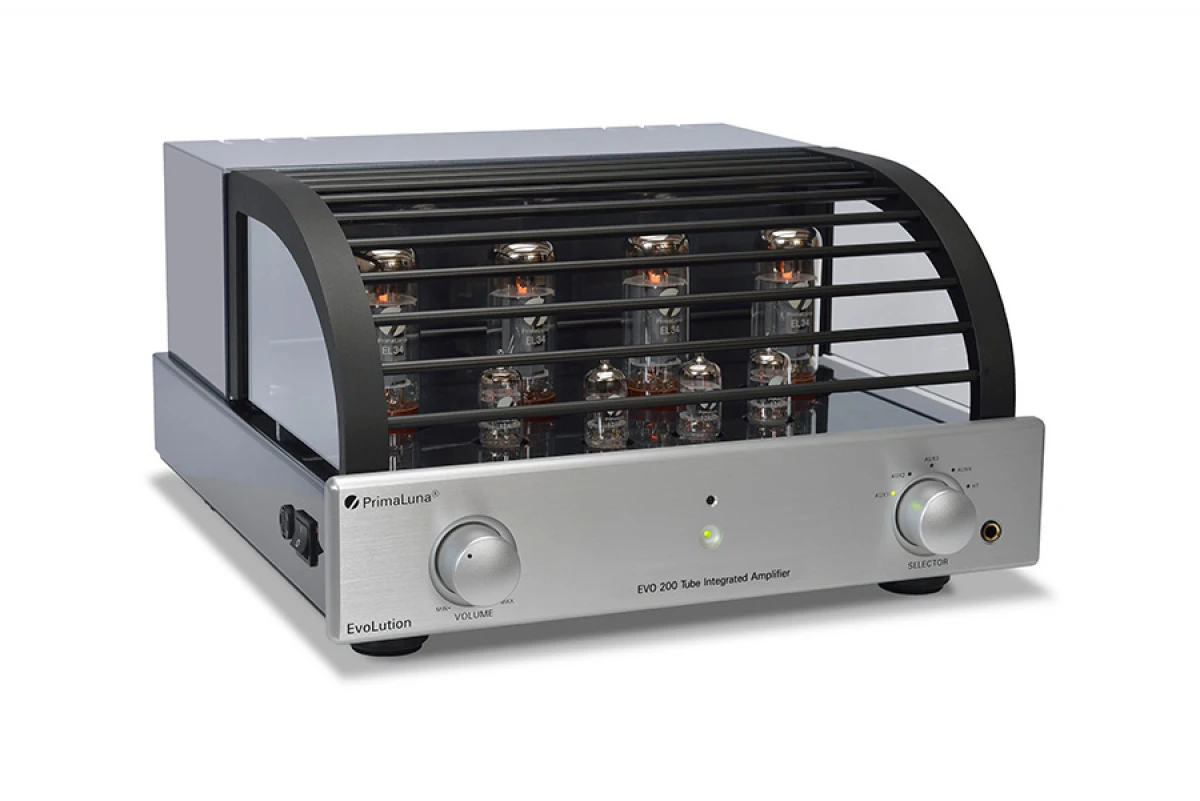

    PrimaLuna EVO 200

    This stereo power amplifier can be easily switched to mono mode using the switch on the back panel. After that, your monoblock receives another outlet outlet for a load with a nominal resistance of 2 ohms (in addition to 4 ohms and 8 ohms), and two output transformers will provide better alignment with the speakers.

  • EVO 300

    Integrated amplifiers

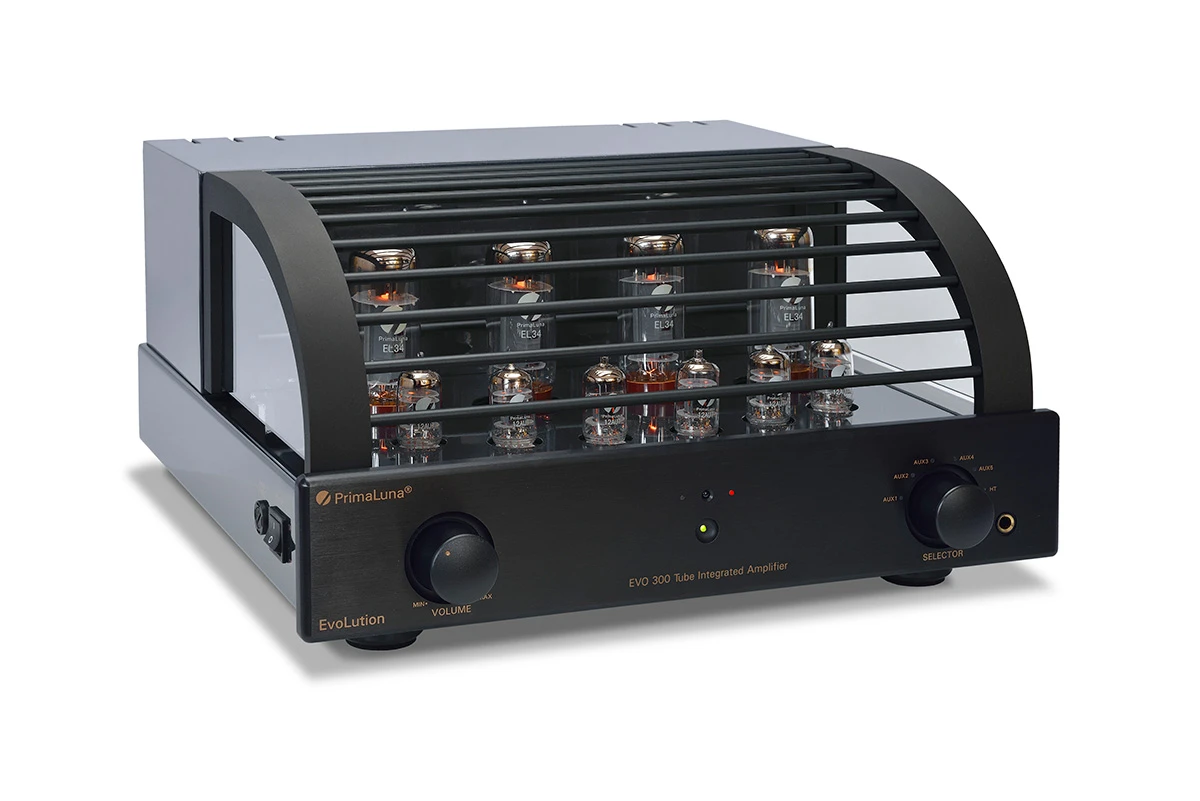

    PrimaLuna EVO 300

    The PrimaLuna EVO 300 Integrated is the second oldest integrated amplifier, producing 2 x 24 W or 2 x 42 W in ultraline mode on EL34 lamps.

  • EVO 400

    Integrated amplifiers

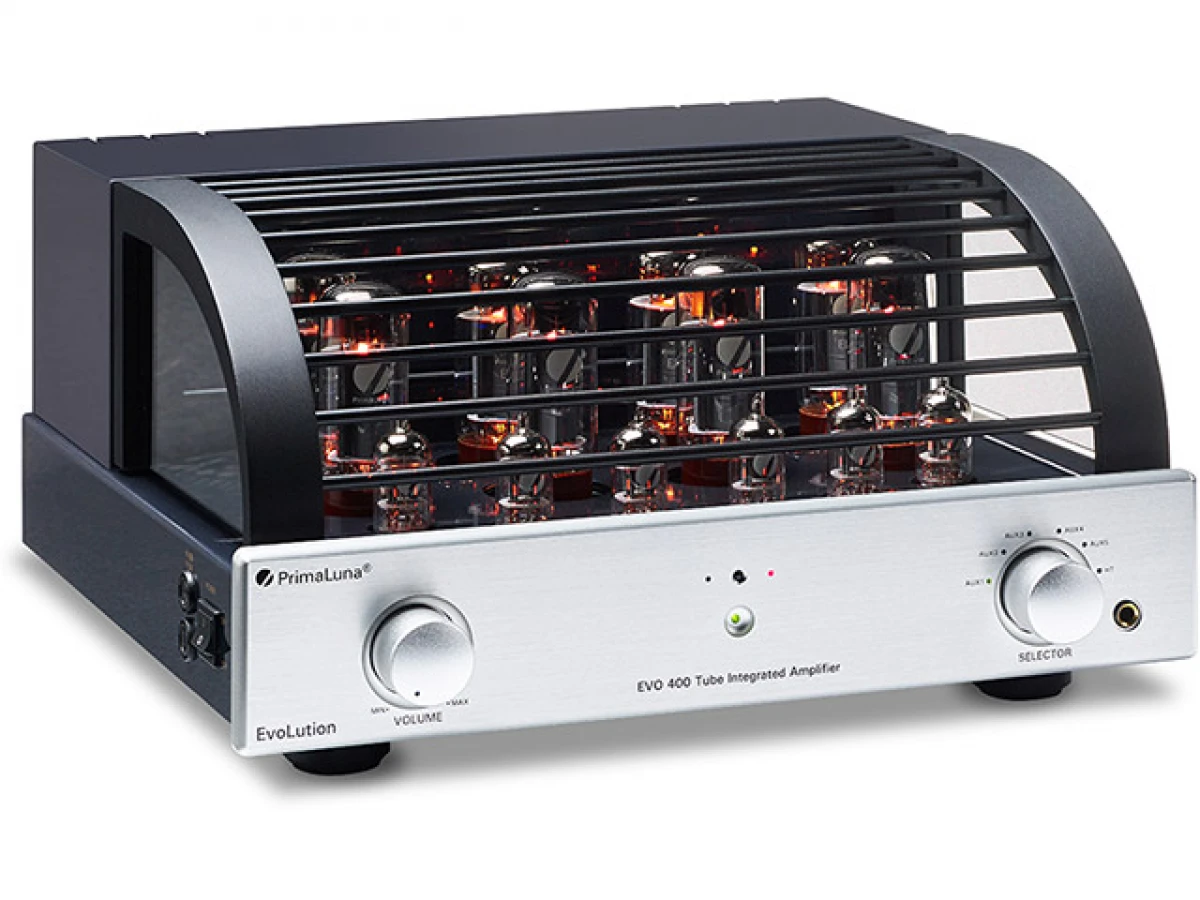

    PrimaLuna EVO 400

    The PrimaLuna EVO 400 Power is the oldest of the four power amplifiers, producing 2 x 38 Watts of triode operation on EL34 lamps or 2 x 70 watts in ultraline mode. It can also operate on KT88 / KT120 / KT150 lamps, respectively, producing 2 x 43 / 2 x 45 / 2 x 51 watts in triode mode or 2 x 72 / 2 x 85 / 2 x 89 watts in ultralinear mode.
