Integrated amplifiers — Fezz Audio Olympia Dual Mono Amplifier
Description, images, technical data and specifications

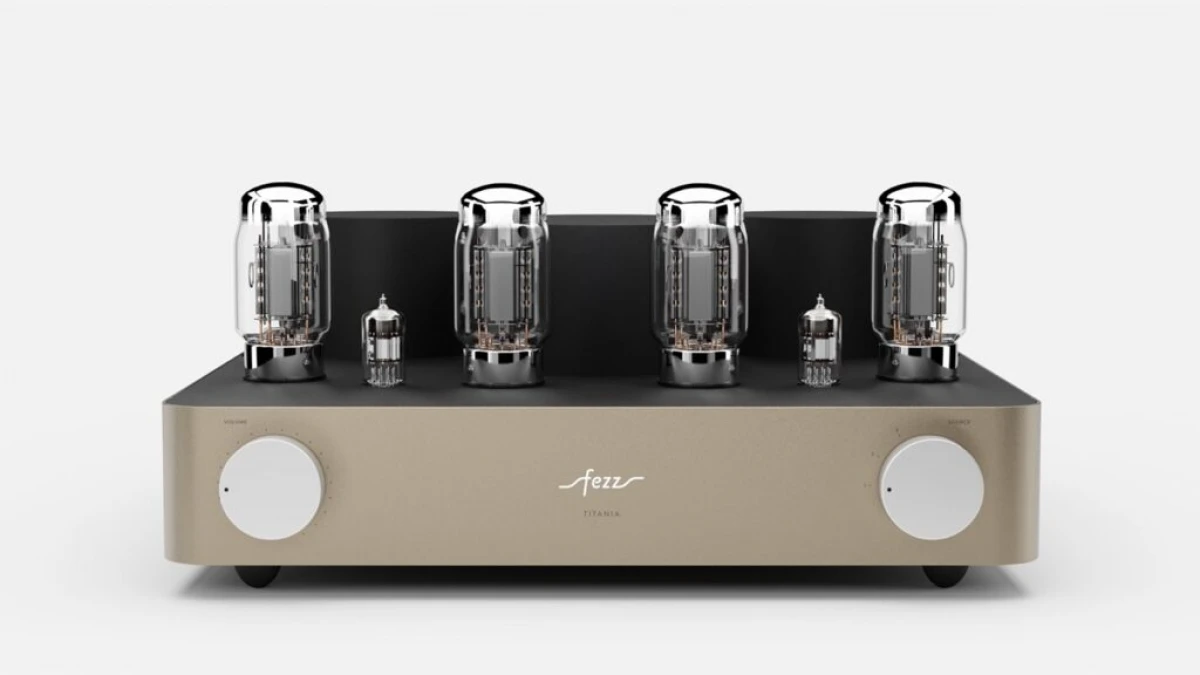

Fezz Audio Olympia Dual Mono Amplifier
Image source — © Fezz Audio
Olympia Dual Mono Amplifier based on 8 x KT88 power tubes and offers 2 x 100 W output power. An optional equipment card slot extension can be used for future as a Bluetooth module, phono-stage or DAC.
Specifications
Model name
Olympia Dual Mono Amplifier
Type
Vacuum tube dual mono integrated amplifier
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
4
Input sensitivity (mV)
700
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
50
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
2 x 100
Output power (4Ω) (W)
2 x 100
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
16
Frequency response high +/- 3dB (Hz)
80000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (%)
1
Damping factor
30
Dimensions (mm)
420 x 380 x 200
Weight (kg)
24
