Integrated amplifiers — YBA Passion IA350 MKII

Description, images, technical data and specifications

YBA Passion IA350 MKII
Image source — © YBA

The new Mark II version contains many improvements in the digital part, mainly thanks to a pair of Analog Devices AD1955 DACs with built-in support for PCM up to 24 bit/192 kHz and DSD64. The USB input has also been significantly upgraded thanks to the XMOS controller, which provides the highest sound quality when directly connected to a computer.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
Passion IA350 MKII
Type
Integrated Amplifier with DAC
Analog inputs (balanced)
1
Analog inputs (single-ended)
2
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
115
Output power (4Ω) (W)
160
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>100
Total Harmonic Distortion + Noise (%)
<0.03
Damping factor
N/A
Dimensions (mm)
430 x 380 x 108
Weight (kg)
15
Official link
https://www.ybahifi.com/product/passion-ia350-mkii-integrated-amplifier/

YBA GENESIS IA3A

YBA PASSION IA350A

More components

Integrated amplifiers

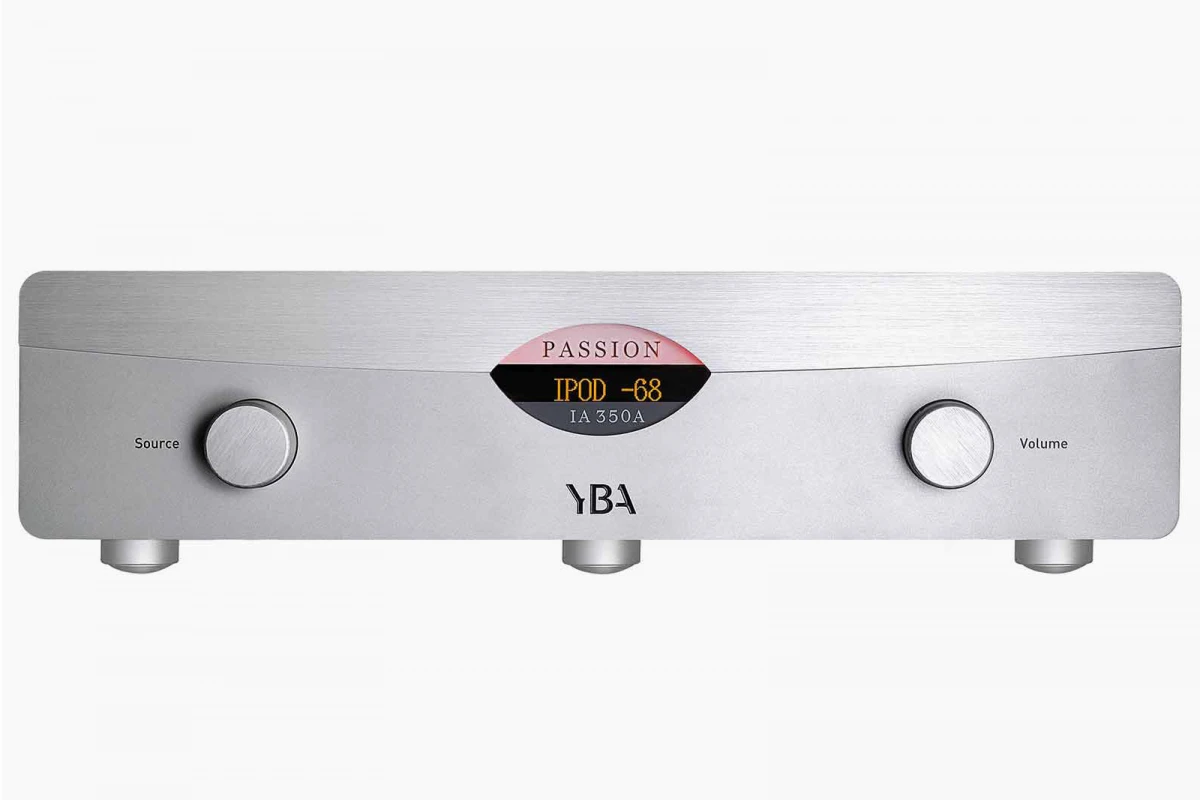

YBA PASSION IA350A
The presence of analog and digital inputs allows for a wide range of sources. Digital inputs include coaxial digital input S/PDIF (75 ohms), USB (24/192 kHz) plus AES/EBU, I 2S, iPod; all of them receive digital signals from individual digital components. The analog inputs include 2 RCA and 1 balanced. All digital inputs are automatically configured to any standard data transmission format from 16/44.1 kHz to 24/192 kHz.
Integrated amplifiers
YBA GENESIS IA3A
The YBA Genesis IA3 is an integrated amplifier that can give the listener everything they could wish for at a reasonable price, while at the same time offering exceptional workmanship, excellent sound and the widest switching capabilities. In addition to Bluetooth connectivity, which supports the aptX data transfer protocol, the amplifier is also equipped with a high-end DAC with coaxial input and USB (24/192 kHz) and coaxial output.
Integrated amplifiers
YBA Heritage A200S
The A200S fits perfectly into any Hi-Fi system, offering one XLR input and five RCA inputs, one pair of speaker connectors, and a pre-output for use with a separate power amplifier or active speakers. The A200S can also be used in a special bypass mode as a pure power amplifier. Everything is easy to control without getting up from the couch with our classic YBA remote control.
Integrated amplifiers

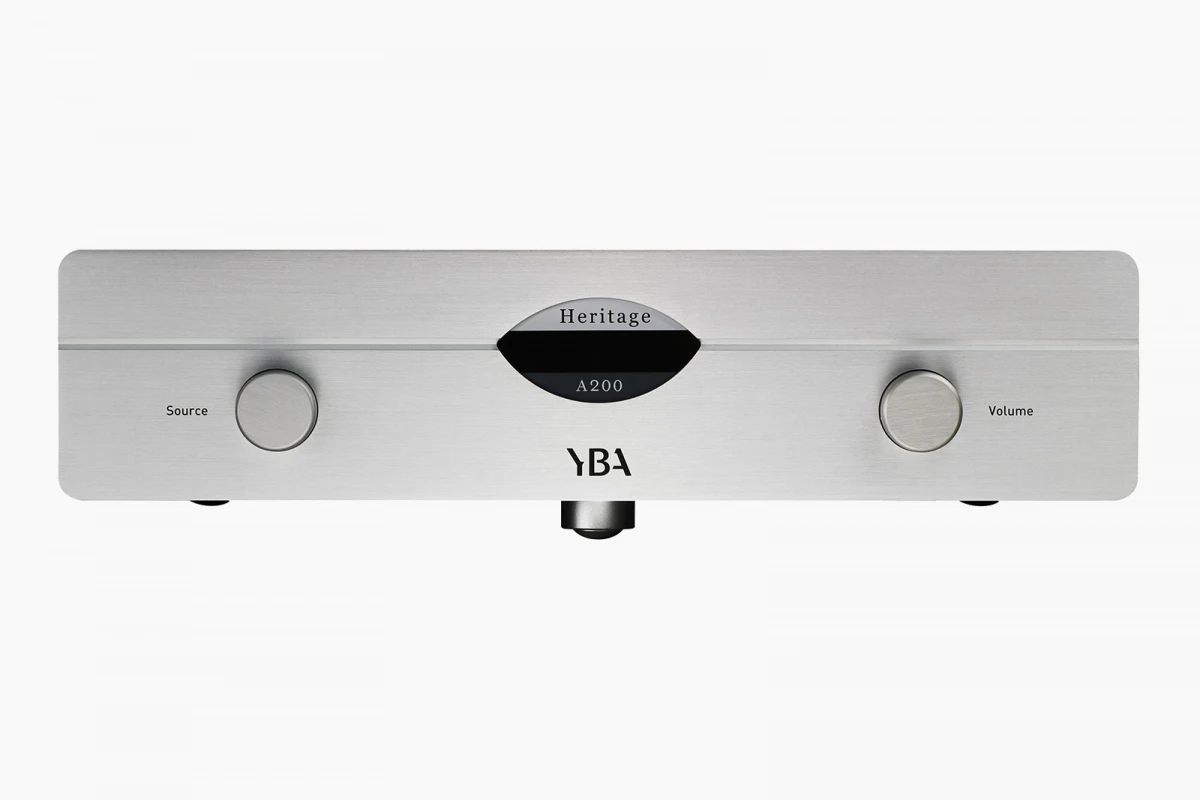

YBA Heritage A200
