Integrated amplifiers — Vincent SV-500

Name: SV-500
Brand: Vincent
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Vincent SV-500
Image source — © Vincent

The SV-500 is equipped with four analog inputs (RCA connectors) and two digital inputs (RCA and optical). There is also an adjustable preamp output (for example, for connecting a subwoofer) and a recording output. The cool look is successfully complemented by a stylish remote control with an aluminum case.

Specifications

Model name
SV-500
Type
Integrated Amplifier
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
4
Input sensitivity (mV)
420
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
50
Output power (4Ω) (W)
80
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Signal to Noise Ratio (dB)
>90
Total Harmonic Distortion + Noise (%)
<0.1
Damping factor
N/A
Dimensions (mm)
430 x 118 x 375
Weight (kg)
10
Official link
https://www.vincent-tac.de/en/product-lines/powerline/sv-500.html

Vincent SV-228

More components

Integrated amplifiers

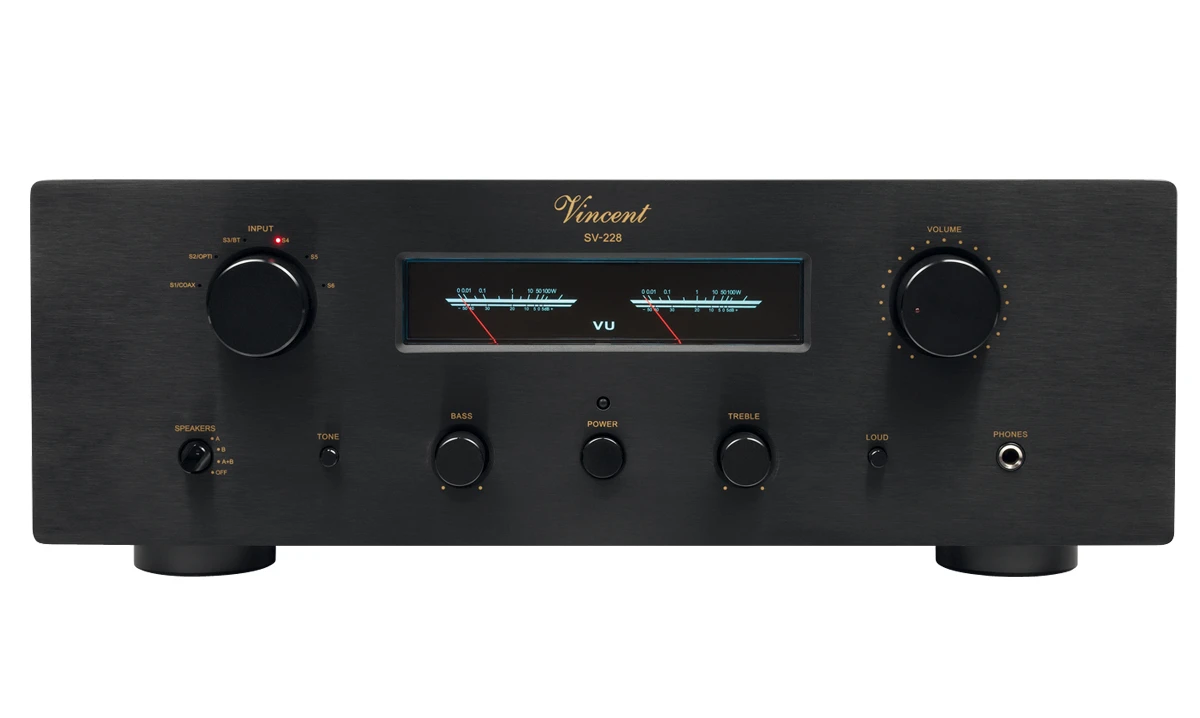

Vincent SV-228
The Vincent SV-228 integrated amplifier with a volume level meter built into the front panel will replace the SV-227 MK model. The hybrid design implies the simultaneous use of 6N4, ECC82 lamps and transistors in the output stage.
Integrated amplifiers

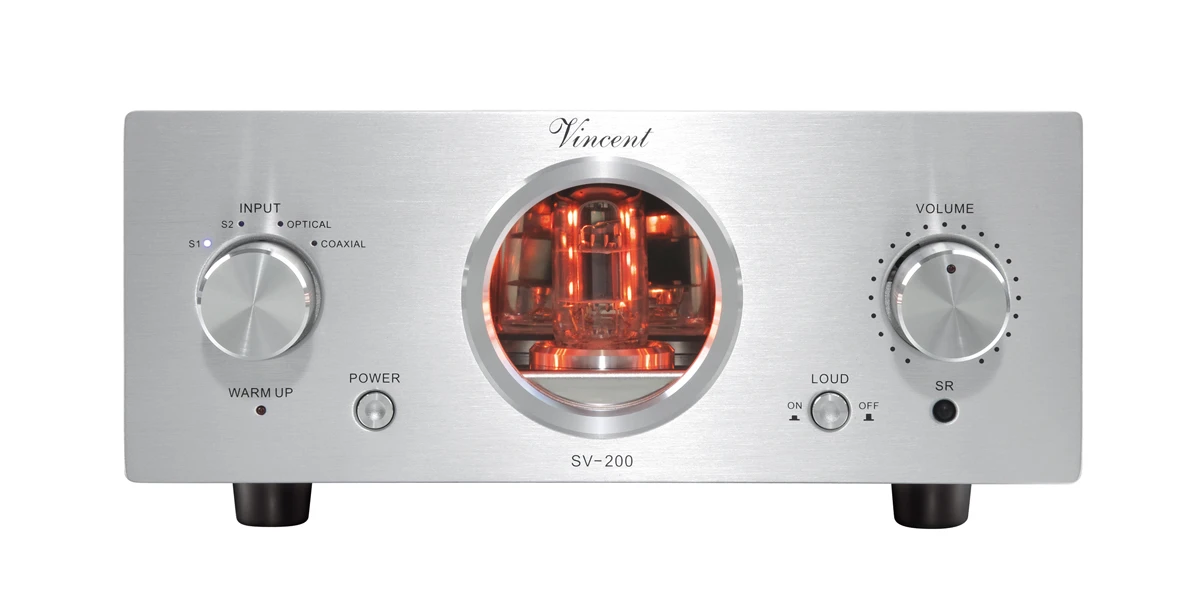

Vincent SV-200
The SV-200 model is the "younger brother" of the SV-237MK and SV-700 integrated amplifiers. Despite the compact design, the company's engineers made only a few compromises. It retains high definition and low noise levels. The sound signal is processed by two 6N1 lamps.
Integrated amplifiers

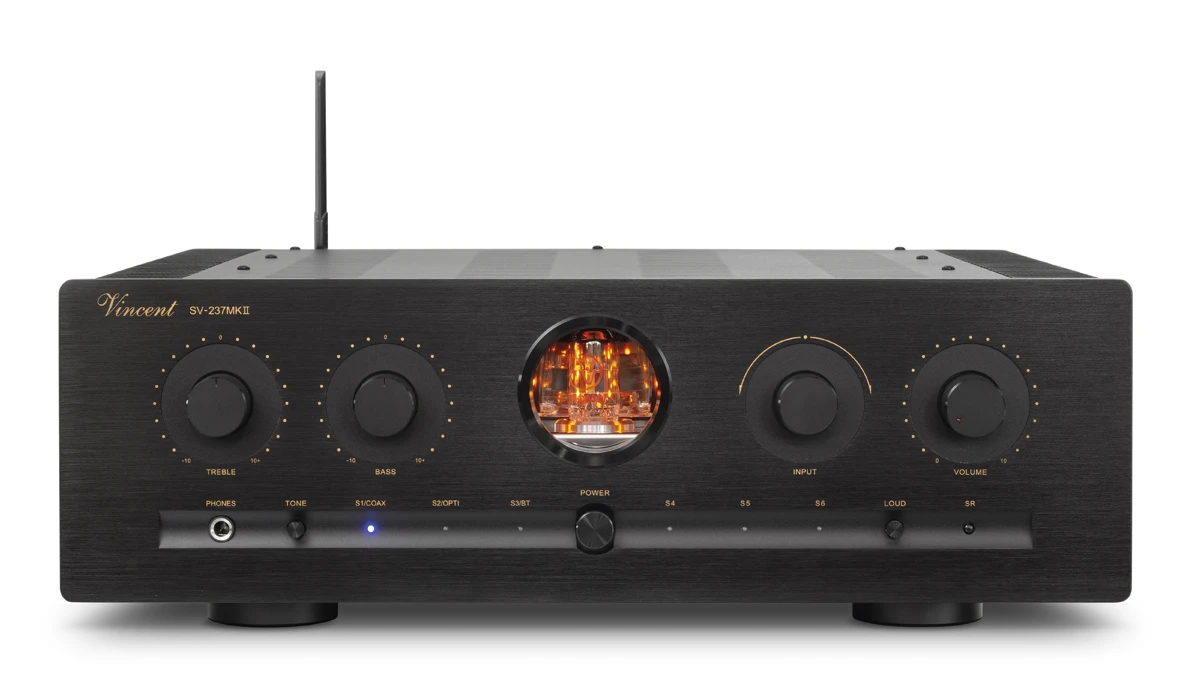

Vincent SV-237MKII
The SV-237 MK II uses hybrid amplification technology. For Vincent, this solution means "the best of both worlds." Two 6N1P lamps operate in the pre-amplification section, giving the sound naturalness and warmth, while the power amplifier section uses 4 transistors, providing excellent dynamics and output power of up to 250 Watts (RMS) per channel.
Integrated amplifiers

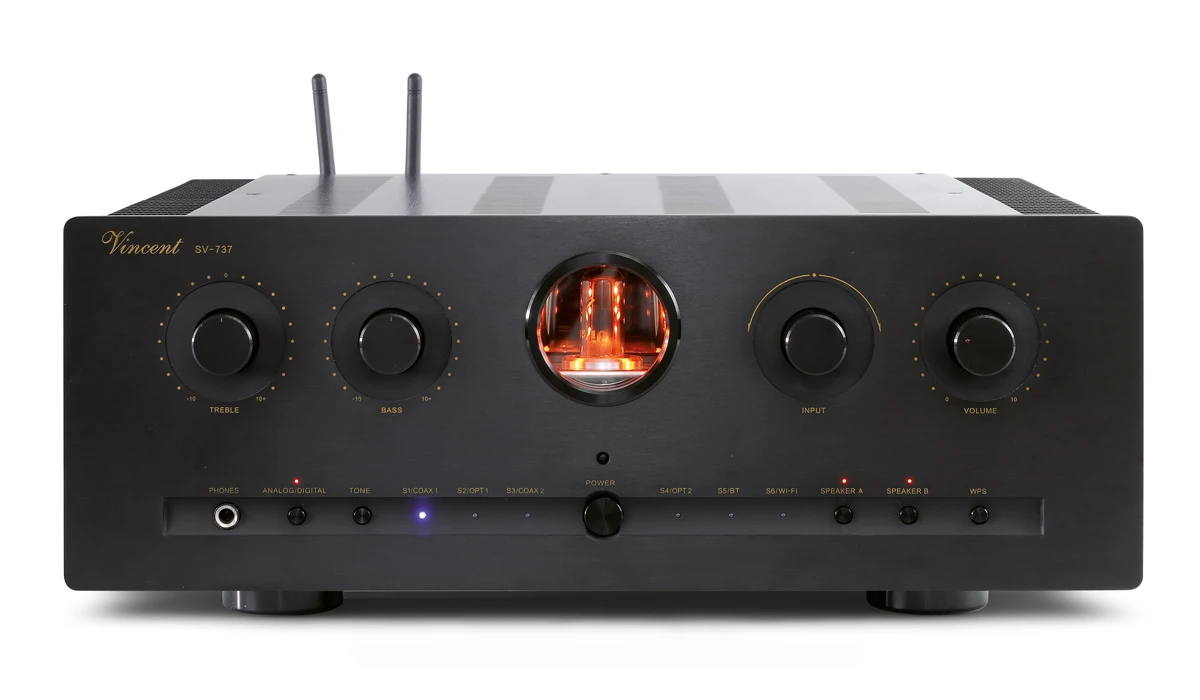

Vincent SV-737
In addition to the amplifier function, the device can act as a digital-to-analog converter, as well as a network Wi-Fi player. It also has a built-in Bluetooth module for wireless music playback from a smartphone. The preamp in the model is made on 6M2 PE V, 6N1P and 85A2 lamps, and the output stage is fully transistor-based and capable of developing 180 Watts at 8 ohms and 300 Watts at 4 ohms load. Moreover, the first 10 Watts are reproduced in Class A.
Integrated amplifiers

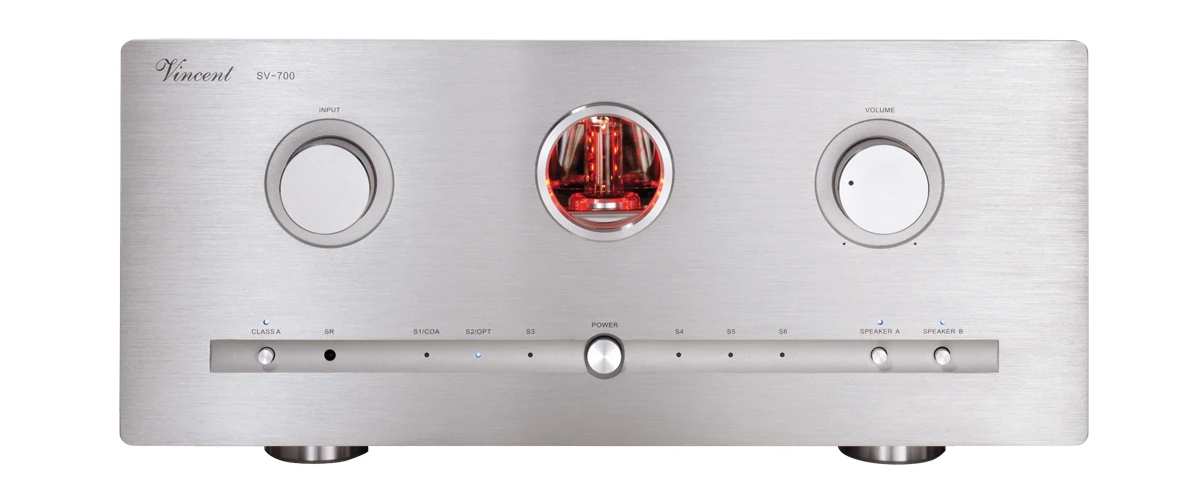

Vincent SV-700
