Power amplifiers mono — Krell KMA I800

Name: KMA I800
Brand: Krell
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Krell KMA I800
Image source — © Krell

The bandwidth of the Krell KMA-i800 extends up to 147 kHz with an error of 3 dB, and the basic performance characteristics are provided by the company according to a much more stringent standard. The model has a dumping factor of 800 units and uses a monstrous 5,400 VA power transformer and a 188,000 UF capacitor bank. The output stage is unique – a pair of out-of-phase amplifiers is used, which provides twice as much distortion attenuation.

Specifications

Model name
KMA I800
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
50 000
Output impedance (balanced) (Ω)
<0.05
Output impedance (single-ended) (Ω)
<0.05
Max current (A)
N/A
Output power (8Ω) (W)
800
Output power (4Ω) (W)
1600
Gain (dBu)
26.5
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
>110
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.05
Max power consumption (W)
3000
Damping factor
>400
Dimensions (mm)
483 x 229 x 533
Weight (kg)
54.4
Official link
https://www.krell.industries/kma-i800

Krell Solo 375 XD

More components

Power amplifiers mono

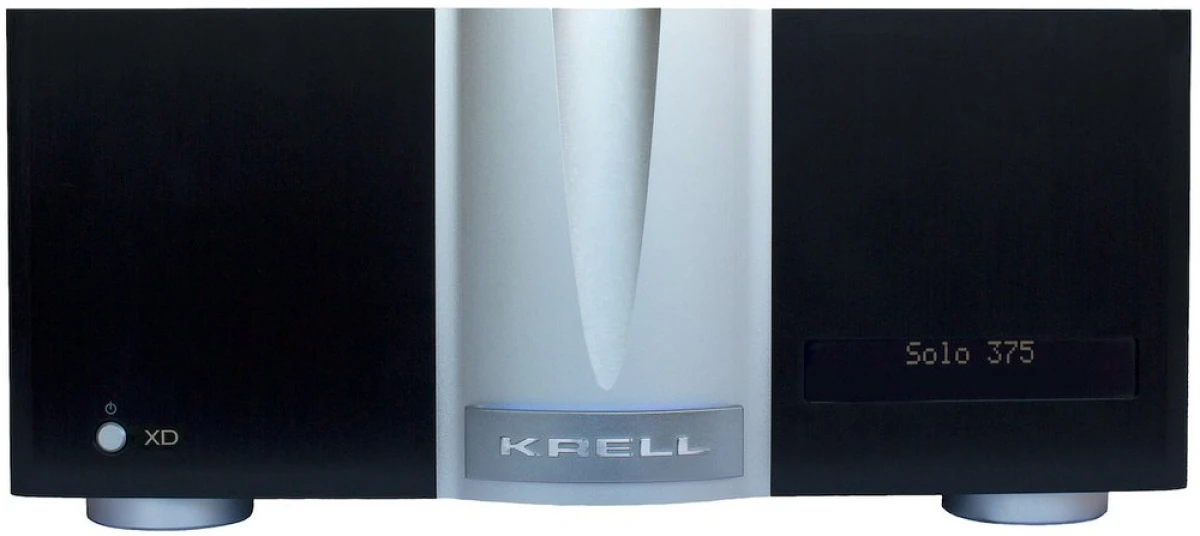

Krell Solo 375 XD
