Power amplifiers mono — Vtl (Vacuum Tube Logic) Siegfried Series II Reference

Description, images, technical data and specifications

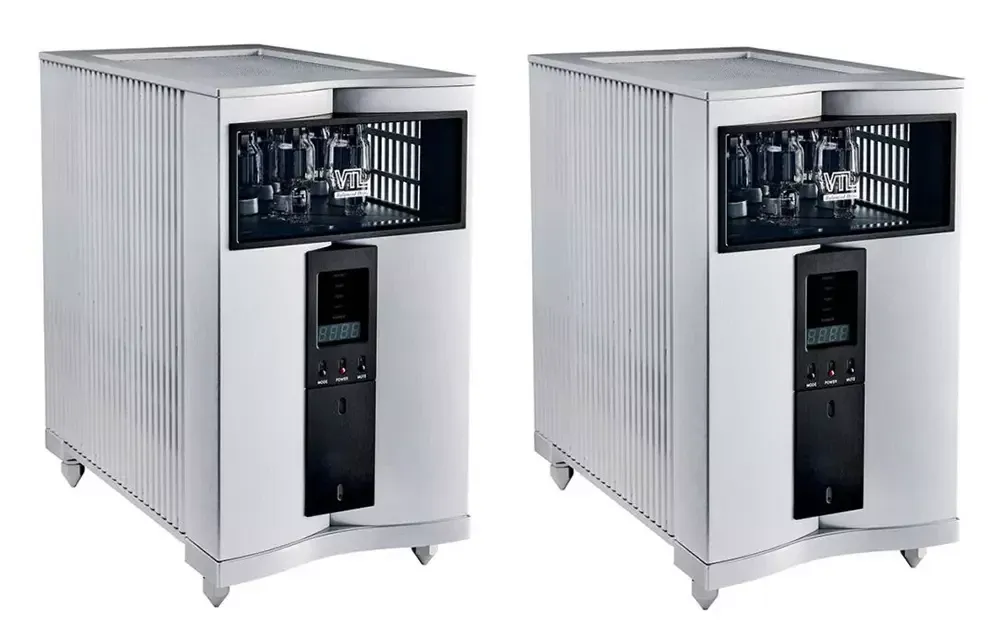

Vtl (Vacuum Tube Logic) Siegfried Series II Reference
Image source — © Vtl (Vacuum Tube Logic)

The veteran of the high-power tube amplifier market outputs up to 650 watts of power in tetrode mode, with 12 6550 type lamps used in each channel. Huge stabilized power supplies and an impressive case are responsible for the impressive weight of 90 kilograms per monoblock or 180 kg for a stereo system.

Specifications

  • Model name

    Siegfried Series II Reference

  • Input sensitivity (mV)

    1000 - 2000

  • Input impedance (balanced) (Ω)

    45 000

  • Input impedance (single-ended) (Ω)

    45 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    Tetrode: 650, Triode: 330

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    110

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    1500

  • Damping factor

    N/A

  • Dimensions (mm)

    292 x 610 x 610

  • Weight (kg)

    147

  • Official link

    https://www.vtl.com/products/power-amplifiers/monoblock-amplifiers/siegfried-series-ii-reference-monoblock/
