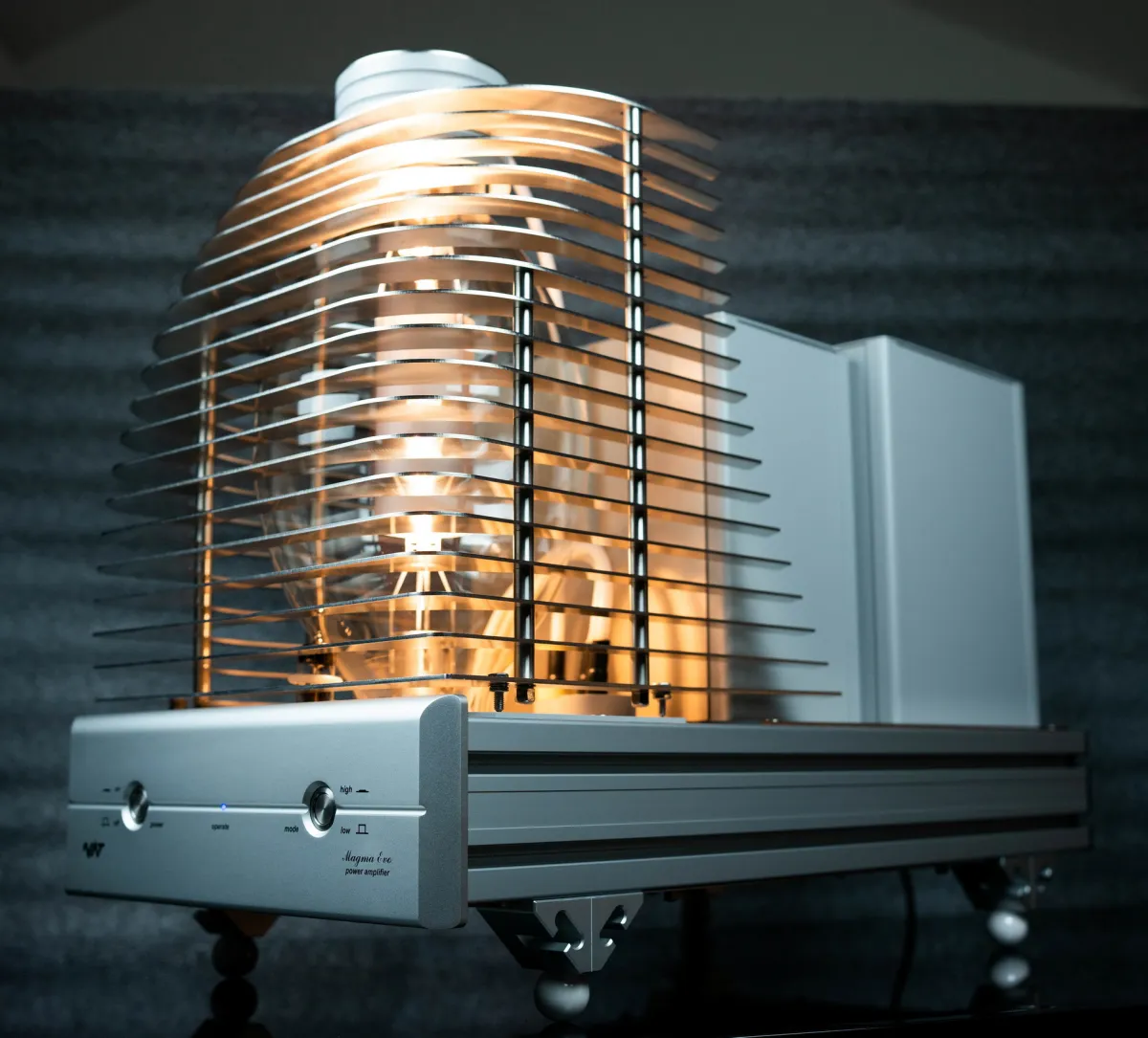

NAT Transmitter EVO
Image source — © NAT
NAT Transmitter Evo based on Single Ended Class "A" Triode scheme with output stage that can operate in two modes – high power up to 80 W or low power up to a moderate 40 W. Both modes use a directly heated triode in a single-ended connection. With a power of 80 W in a single-ended configuration, it is possible to choose almost any speaker system as a partner - NAT Transmitter EVO is capable of working with speaker systems with an impedance of 2 to 16 Ohms.
Specifications
Model name
Transmitter EVO
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
N/A
Output power (4Ω) (W)
80
Gain (dBu)
N/A
Sensitivity (mV)
N/A
Frequency response low +/- 3dB (Hz)
8
Frequency response high +/- 3dB (Hz)
60000
Signal to Noise Ratio (dB)
110
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
360 x 640 x 310
Weight (kg)
40
