Power amplifiers stereo — Krell DUO 125 XD

Name: DUO 125 XD
Brand: Krell
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Krell DUO 125 XD
Image source — © Krell

The amplifier uses XD technology (lowering the output impedance for better control of speakers and more accurate music playback) and iBias technology (which allows you to combine Class A sound qualities with the dynamics of classic Krell amplifiers, as well as the efficiency and low power consumption of Class G and H amplifiers).

Specifications

Model name
DUO 125 XD
Input sensitivity (mV)
1630
Input impedance (balanced) (Ω)
200 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
<0.015
Output impedance (single-ended) (Ω)
<0.015
Max current (A)
18
Output power (8Ω) (W)
125
Output power (4Ω) (W)
250
Gain (dBu)
25.8
Frequency response low +/- 3dB (Hz)
0.5
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
>95
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.03
Max power consumption (W)
1350
Damping factor
>530
Dimensions (mm)
434 x 194 x 536
Weight (kg)
22.7
Official link
https://www.krell.industries/duo-xd

Krell KSA I400

Krell DUO 175 XD

More components

Power amplifiers stereo

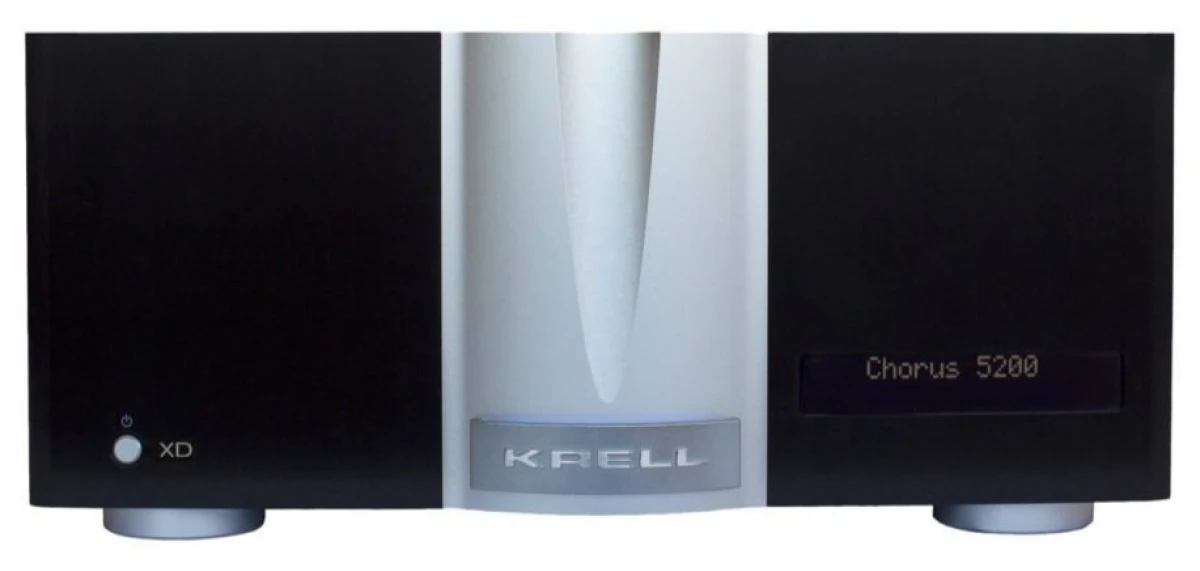

Krell Chorus 5200 XD
The five-channel KRELL Chorus 5200 amplifier, using the new Krell iBias technology, ensures the operation of output amplification stages in pure class A at any output power, but with efficiency close to classes G and H. Class A differs from AB in the absence of switching distortion and, as a result, higher-quality sound.
Power amplifiers stereo
Krell DUO 175 XD
The Krell DUO 175 XD weighs 31.8 kg, develops 2 x 175 watts at 8 ohms of load, has a signal-to-noise ratio of 115 dB and reaches a peak current of 13 A (the dumping factor of the amplifier is 210 units). The XD (Extended Dynamics, Xtended Dimensionality, Extended Detail) scheme provides excellent resolution over the entire spectrum of audible frequencies and brilliant dynamic characteristics.
Power amplifiers stereo

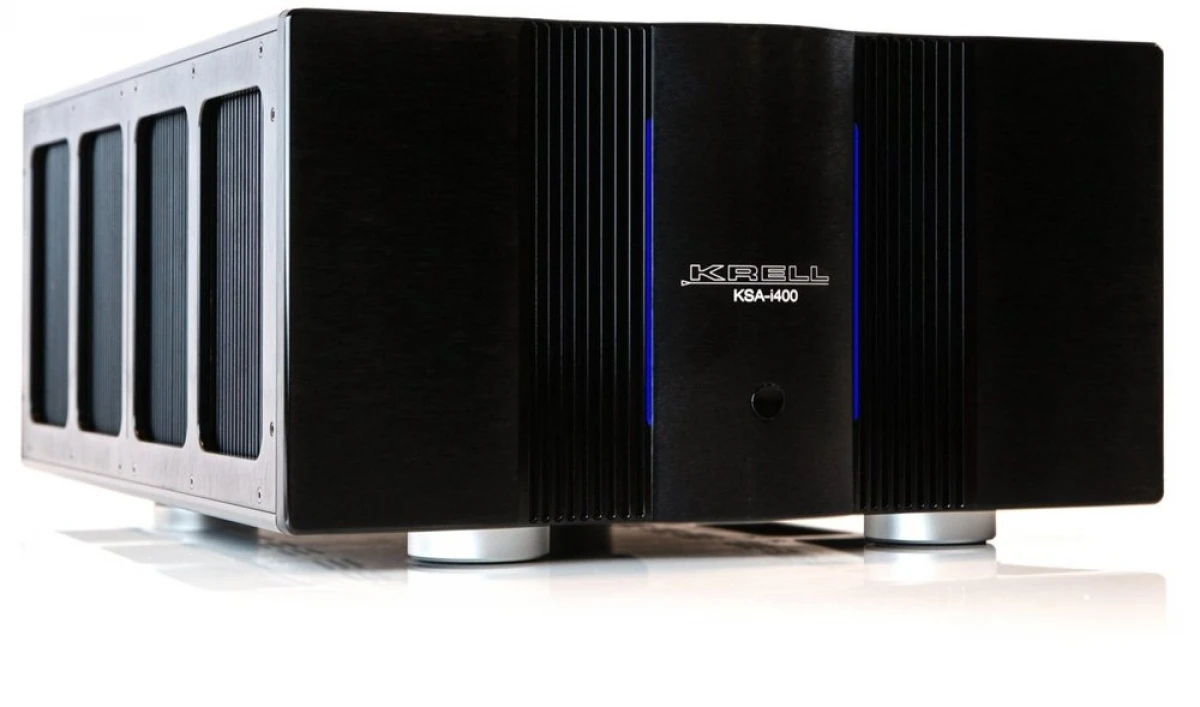

Krell KSA I400
