Preamplifiers — Parasound NC 200PRE

Description, images, technical data and specifications

Parasound NC 200PRE
Image source — © Parasound

The amplifier has the functionality of a DAC based on Burr-Brown chips, the same ones used in the Halo P5. Analog low-frequency recoil regulators are provided for high- and low-level inputs. There is also a configurable high-level crossover and bypass for cinema systems on board.

Specifications

  • Model name

    NC 200PRE

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    4

  • Analog outputs (balanced)

    N/A

  • Analog outputs (single-ended)

    3

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    250

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    24 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    470

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    100 (Line) + 100 (Digital)

  • Total Harmonic Distortion + Noise (THD+N) (%)

    < 0.03

  • Dimensions (mm)

    437 × 362 × 105

  • Weight (kg)

    5

  • Official link

    https://parasound.com/products/nc-200pre

Parasound HALO P6

More components

  • HALO P6

    Preamplifiers

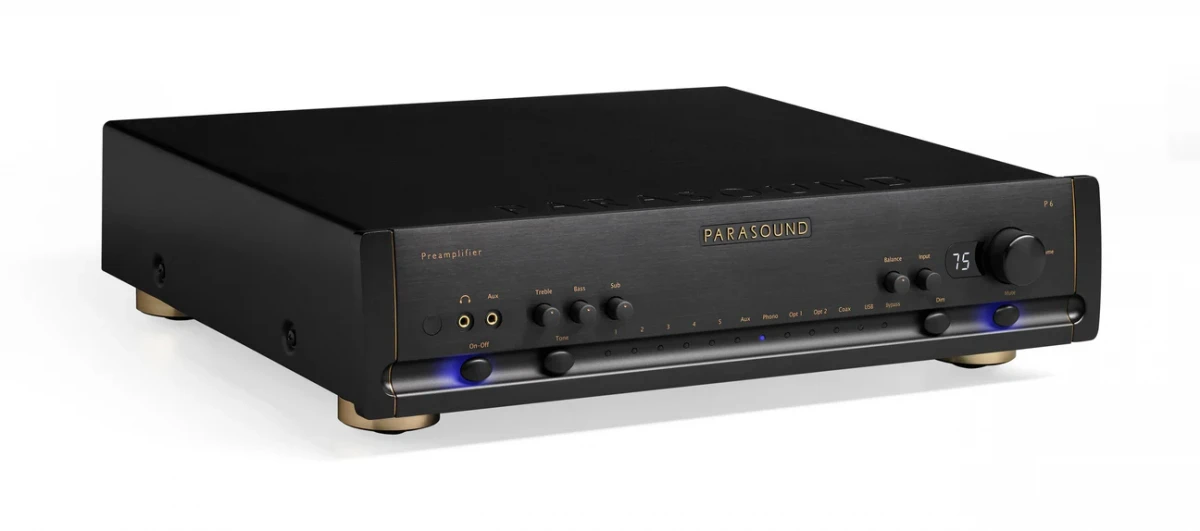

    Parasound HALO P6

    The Parasound Halo P6 has everything that digital and analog sound lovers need. For the former, the company installed a new DAC based on the ESS Sabre32 Reference chip (ES9018K2M). It supports GSM signals with a resolution of up to 32 bits/384 kHz, as well as the native DSD256 stream when the signal is applied to the USB port. If you use coaxial or optical inputs, the resolution is limited to 24/192 format.

  • JC2BP

    Preamplifiers

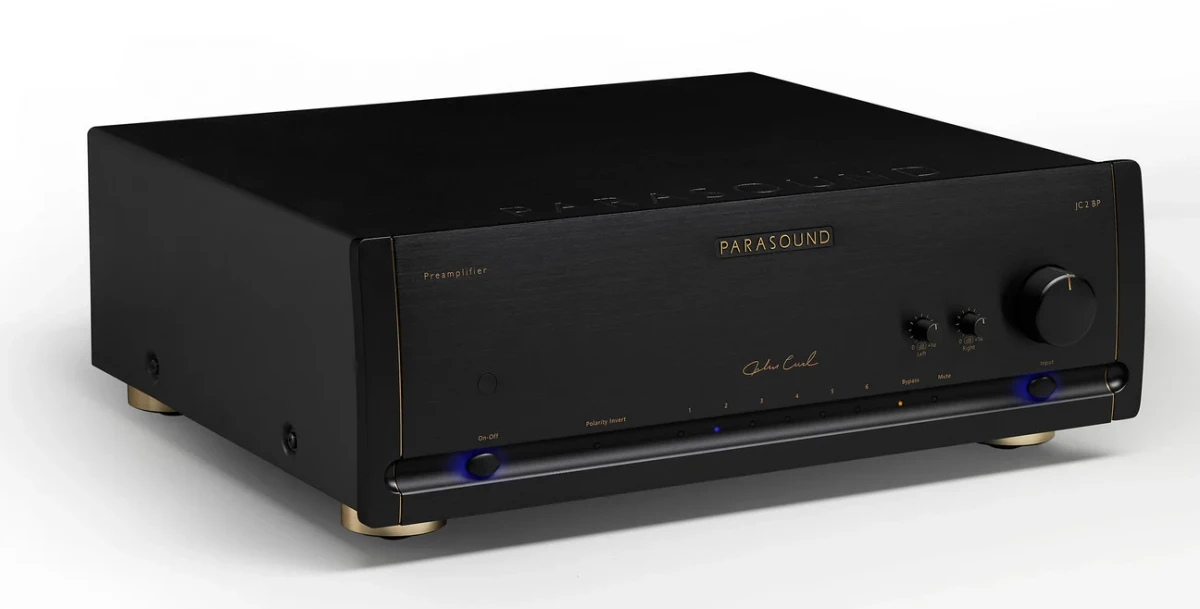

    Parasound JC2BP
