Preamplifiers — Vincent SA-T7 Diamond
Description, images, technical data and specifications
Vincent SA-T7 Diamond
Image source — © Vincent
Specifications
Model name
SA-T7 Diamond
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
6
Analog outputs (balanced)
N/A
Analog outputs (single-ended)
2
Gain (dBu)
N/A
Input sensitivity (mV)
430
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
22 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (SNR, unweighted) (dB)
>100
Total Harmonic Distortion + Noise (THD+N) (%)
<0.001
Dimensions (mm)
430 x 135 x 370
Weight (kg)
8.5
Official link
More components
Preamplifiers

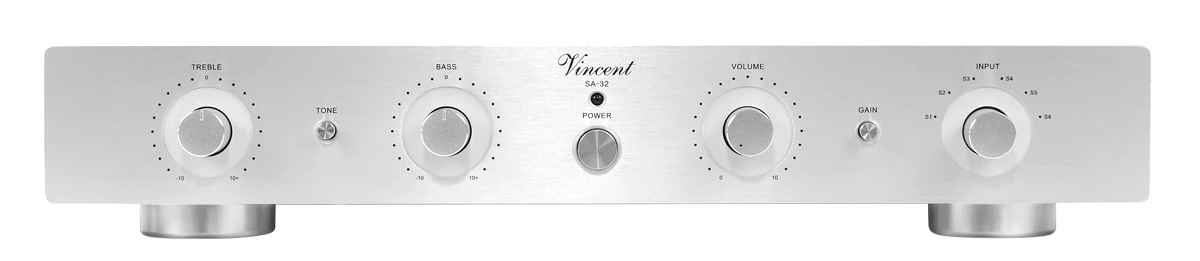

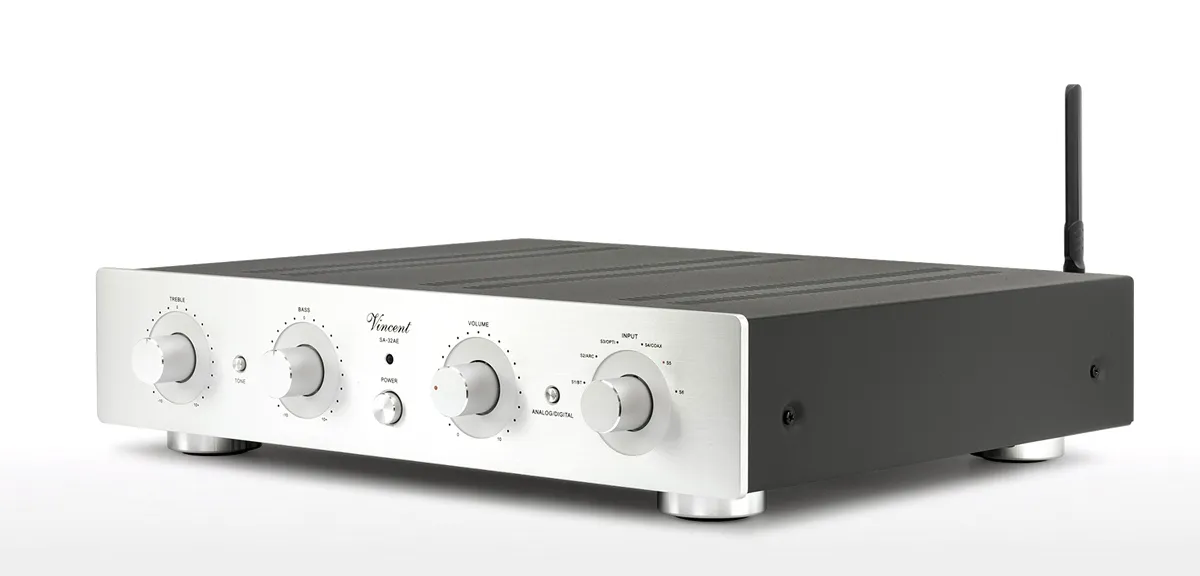

Vincent SA-32
