Preamplifiers — Unison Research UNICO PRE
Description, images, technical data and specifications

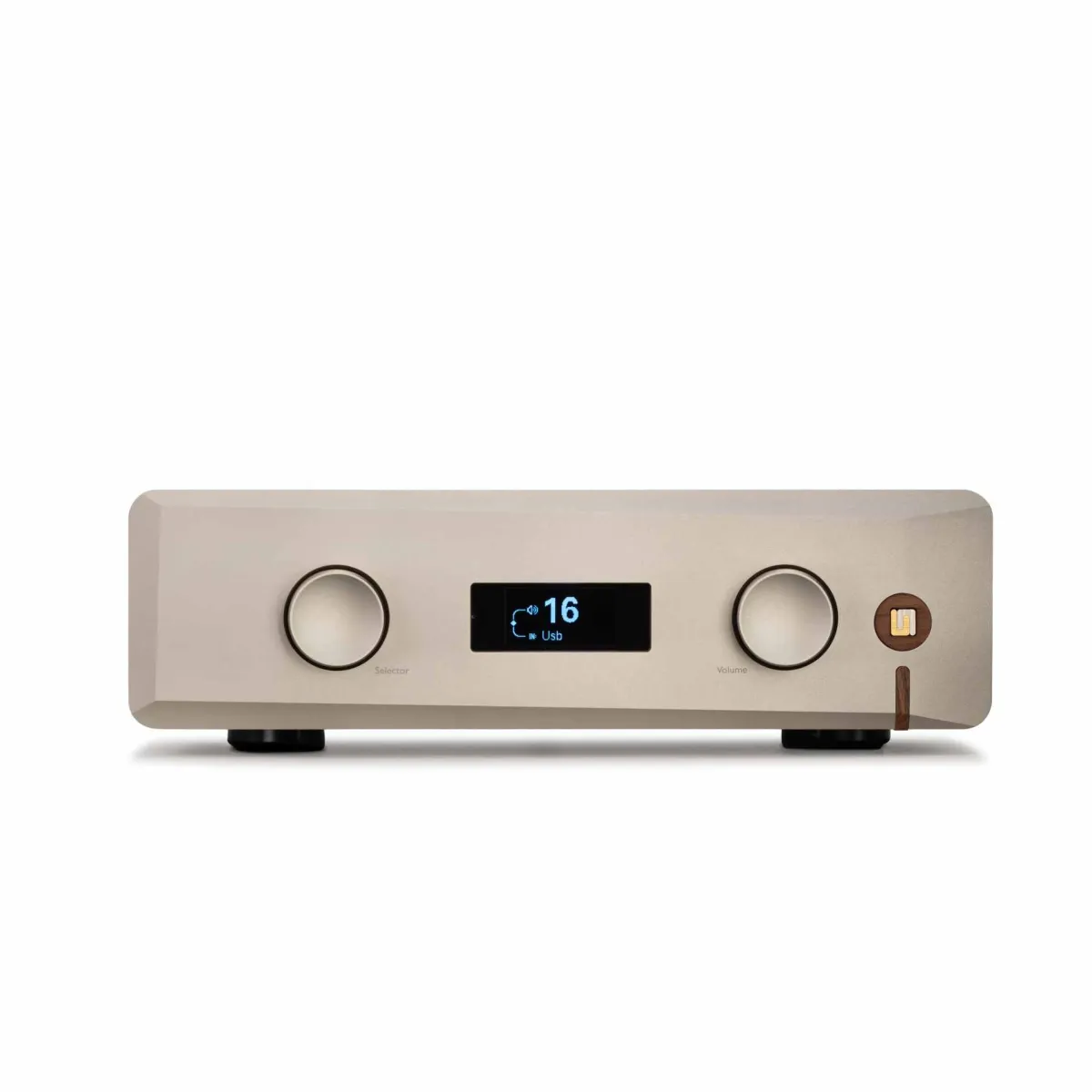

Unison Research UNICO PRE
Image source — © Unison Research
The Unico PRE is a hybrid fully balanced preamp. All audio circuits are designed according to the "double mono" scheme. Each channel has its own pre-stage, an analog attenuator (controlled by an electric drive) and a power supply circuit. Unison Research engineers have developed original schemes for a fully balanced volume control, even for unbalanced signals, which provides the best reproduction accuracy, linearity and noise characteristics.
Specifications
Model name
UNICO PRE
Analog inputs (balanced)
1
Analog inputs (single-ended)
4
Analog outputs (balanced)
1
Analog outputs (single-ended)
2
Gain (dBu)
N/A
Input sensitivity (mV)
250
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
10 000
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (SNR, unweighted) (dB)
95
Total Harmonic Distortion + Noise (THD+N) (%)
0.01
Dimensions (mm)
435 x 430 x 130
Weight (kg)
12
