Bookshelf Speakers — Psb Alpha P5

Description, images, technical data and specifications

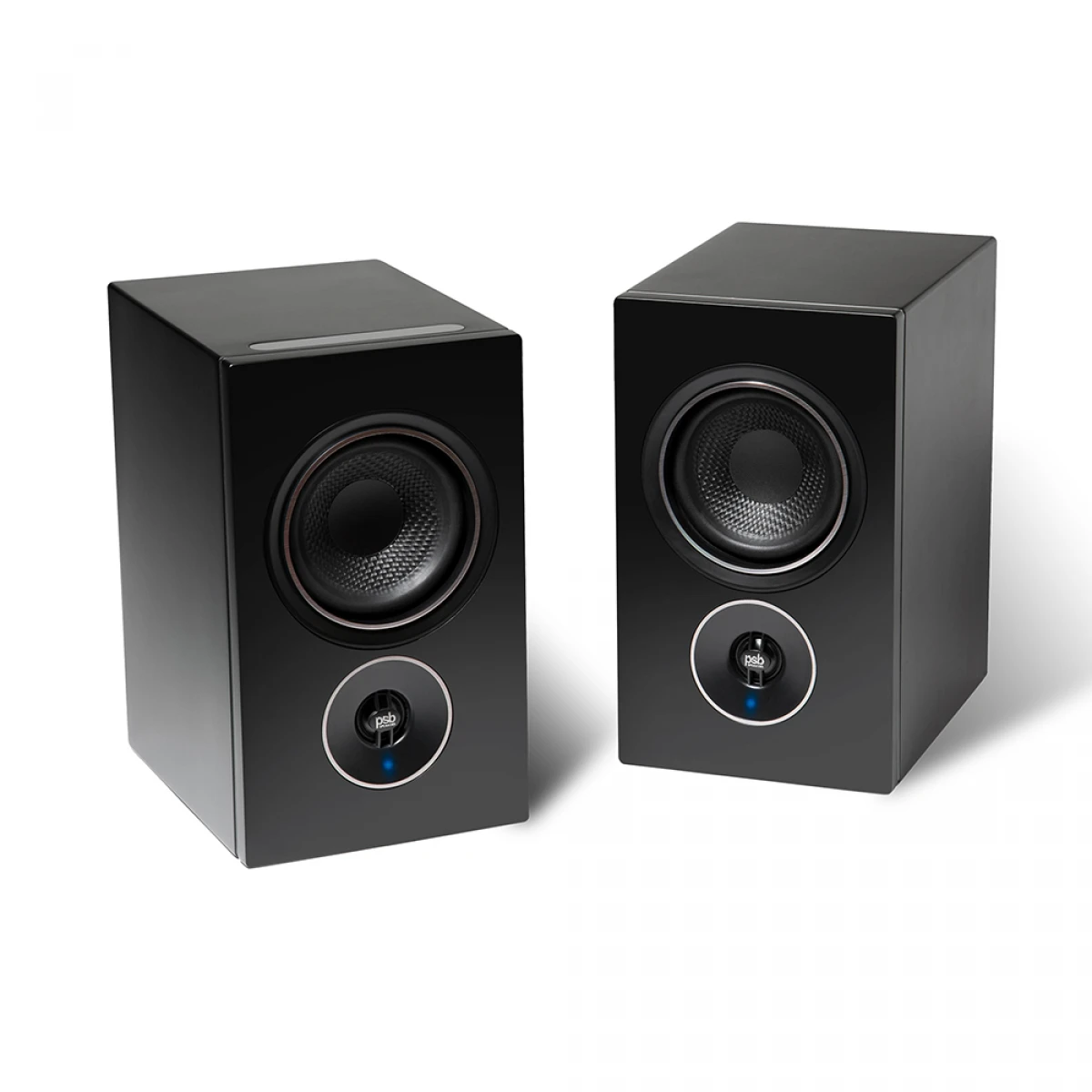

Psb Alpha P5
Image source — © Psb

Two-way acoustics with a 5.25-inch P5 Alpha woofer allows you to turn your system into a source of pristine sound. Equipped with an exquisite body that perfectly reflects low frequencies, it creates a clean and natural sound stage using the latest and most advanced driver technology and magnetic structures.

Specifications

  • Model name

    Alpha P5

  • Frequency Response low +/- 3dB (Hz)

    55

  • Frequency Response high +/- 3dB (Hz)

    21 000

  • Sensitivity (dB at 1 W/1m)

    87

  • Impedance (Ohms)

    8

  • Power amplifier requirements (W)

    10 - 90

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    17.0 x 29.0 x 24.0

  • Weight (kg)

    4.6

  • Official link

    https://www.psbspeakers.com/int/alpha-p5-bookshelf

Psb Alpha iQ

Psb Alpha P3

More components

  • alpha-am3

    Bookshelf Speakers

    Psb alpha-am3

    The Alpha AM3 has a 4-inch woofer and a 35W x 2 amplifier, as well as a 0.75-inch tweeter with an aluminum dome with a neodymium magnet.

  • Alpha AM5

    Bookshelf Speakers

    Psb Alpha AM5

    The Alpha A5 has a 5.25-inch woofer and a 50W x 2 amplifier, as well as a 0.75-inch tweeter with an aluminum dome with a neodymium magnet.

  • Alpha P3

    Bookshelf Speakers

    Psb Alpha P3

    The Alpha P3 is a small two—way speaker system designed to be placed on stands or on a shelf. Featuring a custom 4.5-inch woofer and an aluminum dome tweeter that uses a waveguide to perfectly match low and high frequencies for a smooth transition, the P3 provides improved directivity and equalizes frequency response for a more natural sound.

  • Alpha iQ

    Bookshelf Speakers

    Psb Alpha iQ

    The model is equipped with 4-inch midrange/woofer drivers with polypropylene diffusers and steel baskets. They are complemented by 0.75-inch tweeters with aluminum domes and neodymium magnets. The Class D amplifier is capable of delivering 60 watts on basslines and 30 watts on tweeters.

  • Imagine B50

    Bookshelf Speakers

    Psb Imagine B50

    The PSB Imagine B50 bookshelf speakers deliver a room-filling, realistic sound accentuated by an unexpectedly impressive bass performance. Equipped with a 1-inch tweeter and a 5.25-inch woofer, carefully housed in a compact architectural case, the B50 also showcases a sophisticated 2-way bass reflex circuit, complemented by a rear-facing slot port.
