Bookshelf Speakers — Audionote AX
Description, images, technical data and specifications

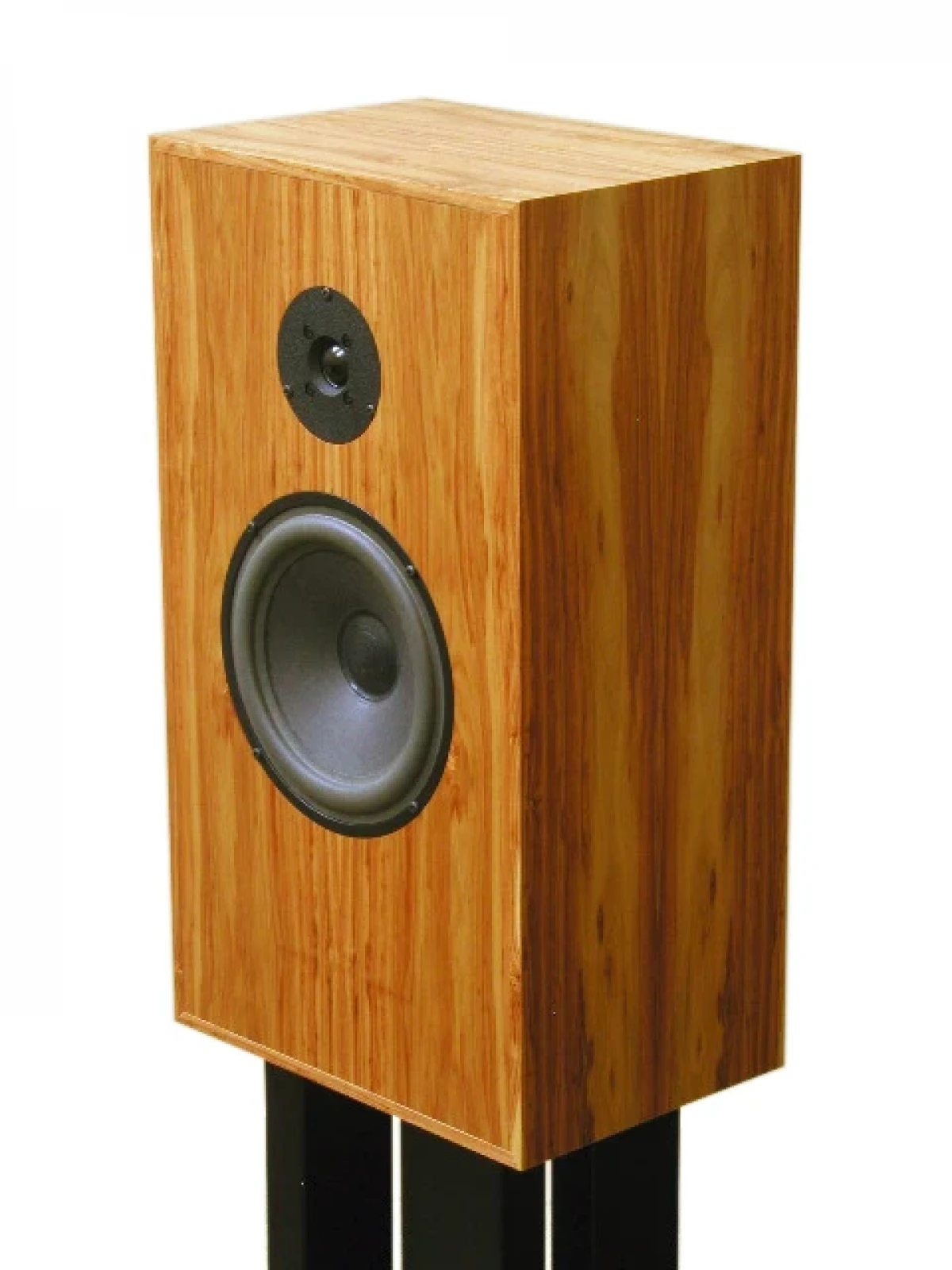

Audionote AX
Image source — © Audionote
The Audio Note AN-X speakers have enclosures with a bass reflex and are designed to be located close to the boundaries of the room (in this case, the efficiency in the low frequency range increases significantly), regardless of whether the speakers stand on high stands or lie on their side, on a rigid shelf.
Specifications
Model name
AX
Frequency Response low +/- 3dB (Hz)
55
Frequency Response high +/- 3dB (Hz)
60 000
Sensitivity (dB at 1 W/1m)
N/A
Impedance (Ohms)
6
Power amplifier requirements (W)
7 - 100
Has internal amplification
N/A
Internal amplification power (W)
N/A
Size (sm)
30.0 x 19.6 x 19.0
Weight (kg)
5
Official link
