Bookshelf Speakers — TAD COMPACT EVOLUTION ONE CE1TX

Description, images, technical data and specifications

TAD COMPACT EVOLUTION ONE CE1TX
Image source — © TAD

The TAD CE1TX-K SILENT monitor body design combines various materials such as birch plywood spacers, medium-density FIBERBOARD panels and aluminum side panels. The proprietary ADS bass reflex bidirectional port system is designed to improve bass reproduction.

Specifications

  • Model name

    COMPACT EVOLUTION ONE CE1TX

  • Frequency Response low +/- 3dB (Hz)

    34

  • Frequency Response high +/- 3dB (Hz)

    100 000

  • Sensitivity (dB at 1 W/1m)

    85

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    200

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    28.7 × 51.0 × 44.7

  • Weight (kg)

    29

  • Official link

    https://www.technicalaudiodevices.com/compact-evolution-one-tx/

TAD COMPACT REFERENCE ONE CR1TX

TAD MICRO EVOLUTION ONE ME1

More components

  • MICRO EVOLUTION ONE ME1

    Bookshelf Speakers

    TAD MICRO EVOLUTION ONE ME1

    The compact three-way speaker system TAD ME1 (Micro Evolution One) is equipped with a proprietary coaxial midrange/tweeter. The fact is that the main reason for unnatural, synthetic sound in the range most sensitive to our hearing is not so much distortion and non-linearity of the frequency response as phase (time) shifts between sound waves of different lengths. To minimize this effect, an emitter with characteristics close to a point sound source was created.

  • COMPACT REFERENCE ONE CR1TX

    Bookshelf Speakers

    TAD COMPACT REFERENCE ONE CR1TX

    The three-way design includes the famous CST (Coherent Source Transducer) coaxial driver, in which both the midrange and high-frequency speakers are equipped with beryllium membranes. The latter provides the system with a frequency range up to 100 kHz.

  • ME1TX

    Bookshelf Speakers

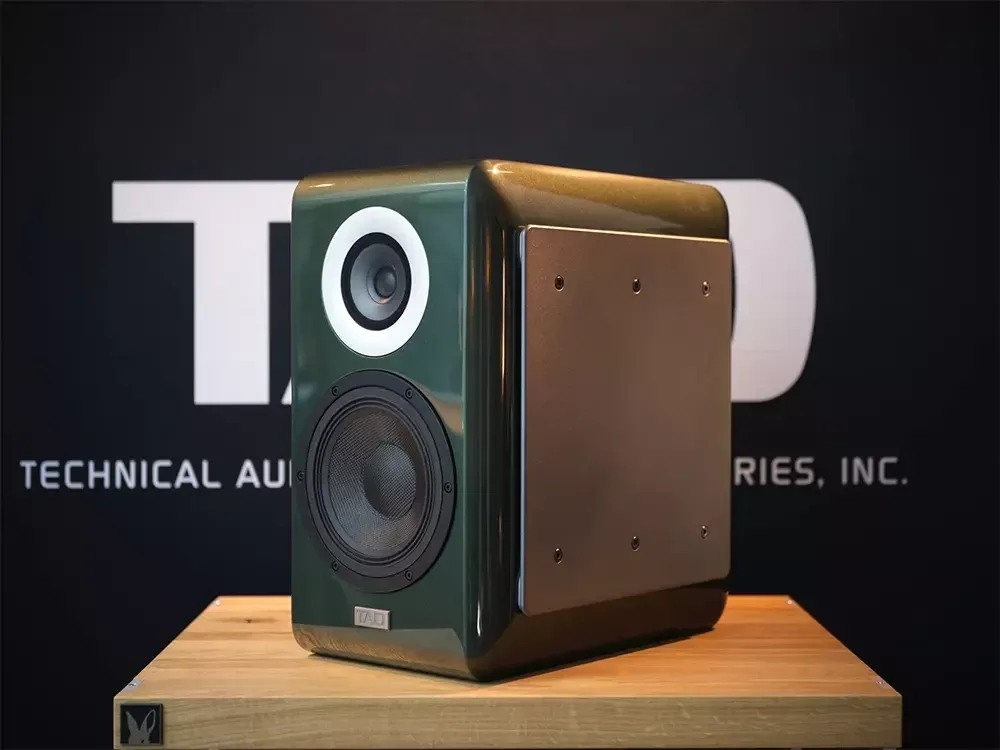

    TAD ME1TX

    The loudspeakers has a three-way design - a 2.5-cm tweeter with a beryllium diaphragm and a 9-cm midrange driver. The drivers are combined into a coaxial CST (Coherent Source Transuder) assembly. They are complemented by a 16-cm woofer with a multilayer composite MACC diffuser, which is made of woven aramid fibers and non-woven materials. The TAD ME1TX operates in the frequency range from 36 Hz to 62,000 Hz.
