Bookshelf Speakers — TAD COMPACT REFERENCE ONE CR1TX

Description, images, technical data and specifications

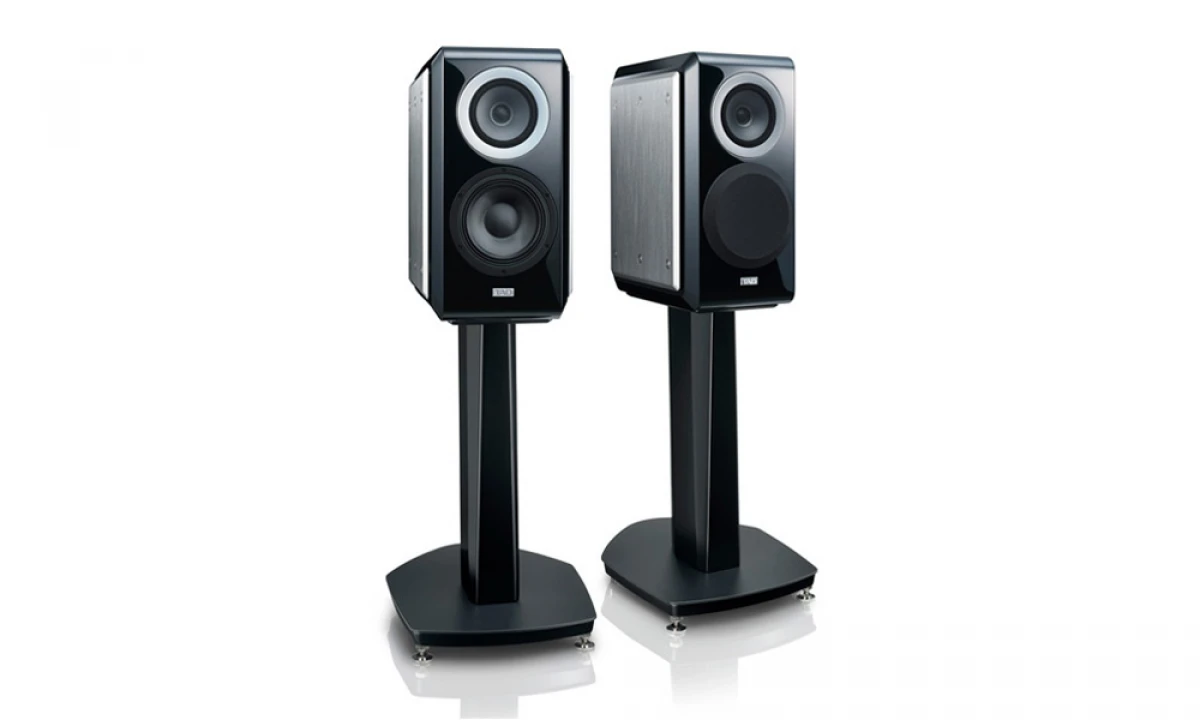

TAD COMPACT REFERENCE ONE CR1TX
Image source — © TAD

The three-way design includes the famous CST (Coherent Source Transducer) coaxial driver, in which both the midrange and high-frequency speakers are equipped with beryllium membranes. The latter provides the system with a frequency range up to 100 kHz.

Specifications

  • Model name

    COMPACT REFERENCE ONE CR1TX

  • Frequency Response low +/- 3dB (Hz)

    32

  • Frequency Response high +/- 3dB (Hz)

    100 000

  • Sensitivity (dB at 1 W/1m)

    86

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    200

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    34.1 × 62.8 × 44.6

  • Weight (kg)

    46

  • Official link

    https://www.technicalaudiodevices.com/compact-reference-one-tx/
