Bookshelf Speakers — Diapason KARIS WAVE

Description, images, technical data and specifications

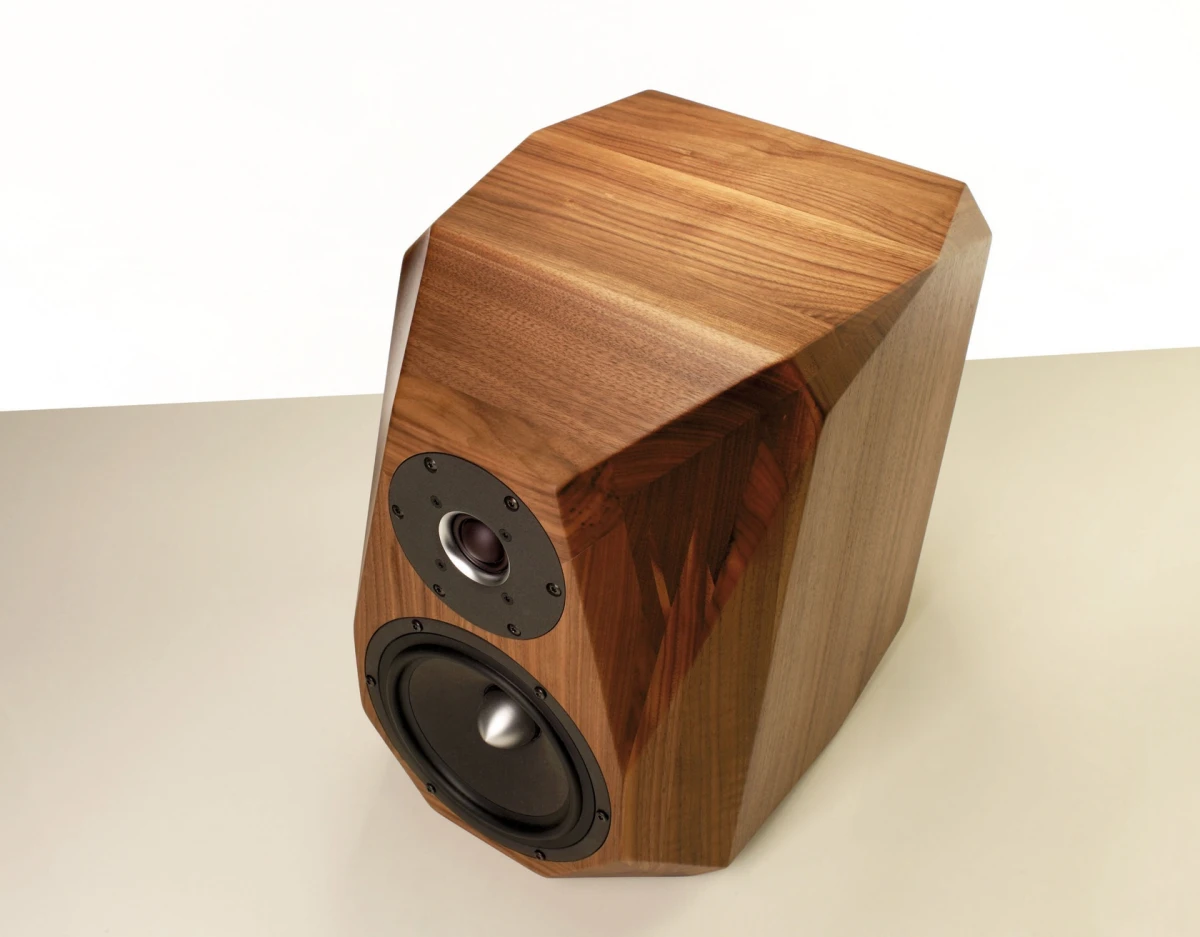

Diapason KARIS WAVE
Image source — © Diapason

The two drivers of the model are covered with large-mesh grills made of acoustically inert metal material. A 2-cm tweeter with a soft silk diaphragm impregnated with a special compound is responsible for the upper case. The midrange/woofer with a diameter of 11 cm has a polymethylpentene diaphragm with a long stroke. A proprietary development of DDD (Diapason Direct Drive) has been implemented, when the signal sent by the amplifier arrives immediately at the woofer, bypassing any filters, and only after that it arrives at the crossover, which contributes to phase uniformity and reduces power loss.

Specifications

  • Model name

    KARIS WAVE

  • Frequency Response low +/- 3dB (Hz)

    60

  • Frequency Response high +/- 3dB (Hz)

    20 000

  • Sensitivity (dB at 1 W/1m)

    87

  • Impedance (Ohms)

    8

  • Power amplifier requirements (W)

    N/A

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    19.0 x 26.0 x 28.5

  • Weight (kg)

    4.5

  • Official link

    https://www.diapason-italia.com/en/karis_wave.html
