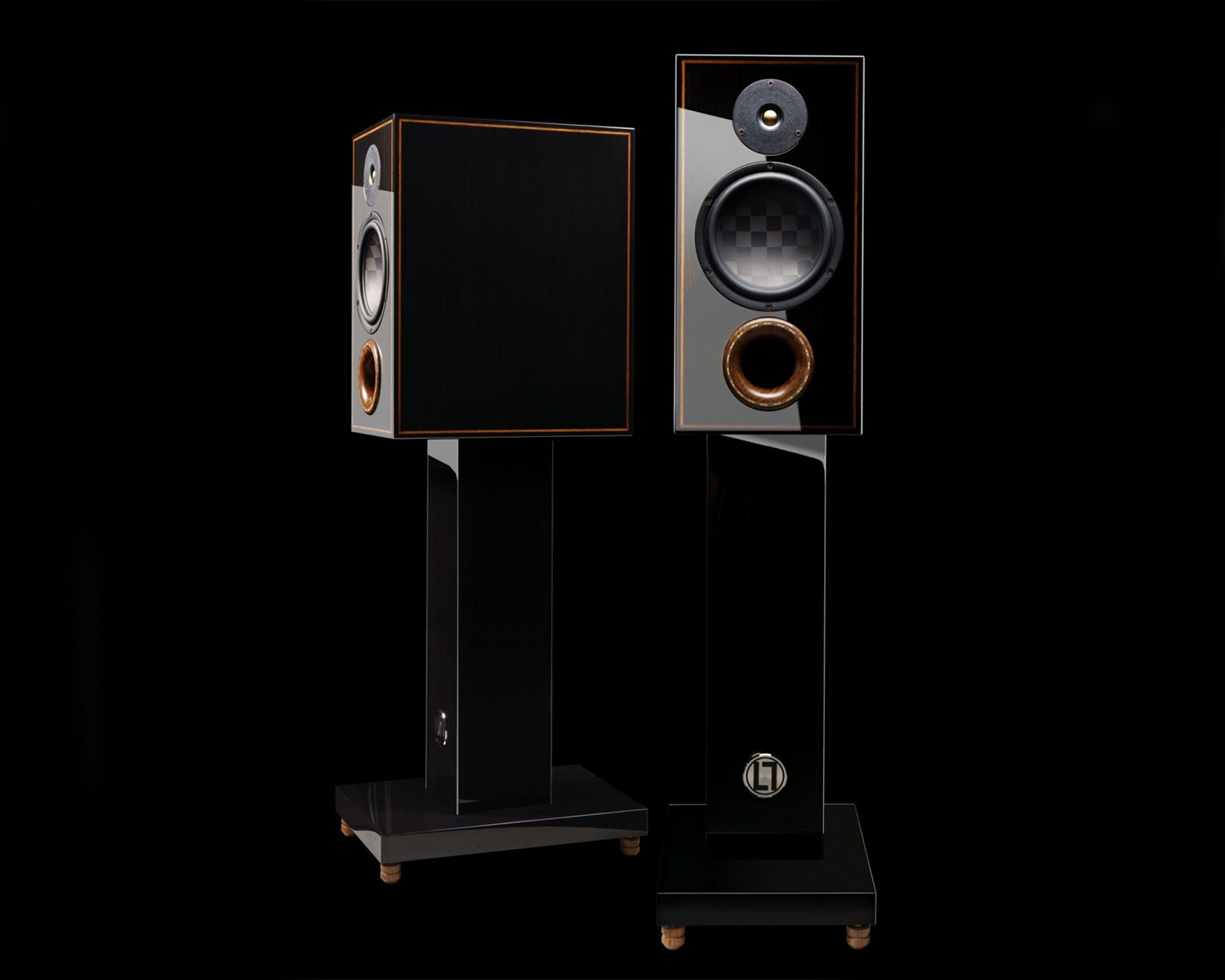

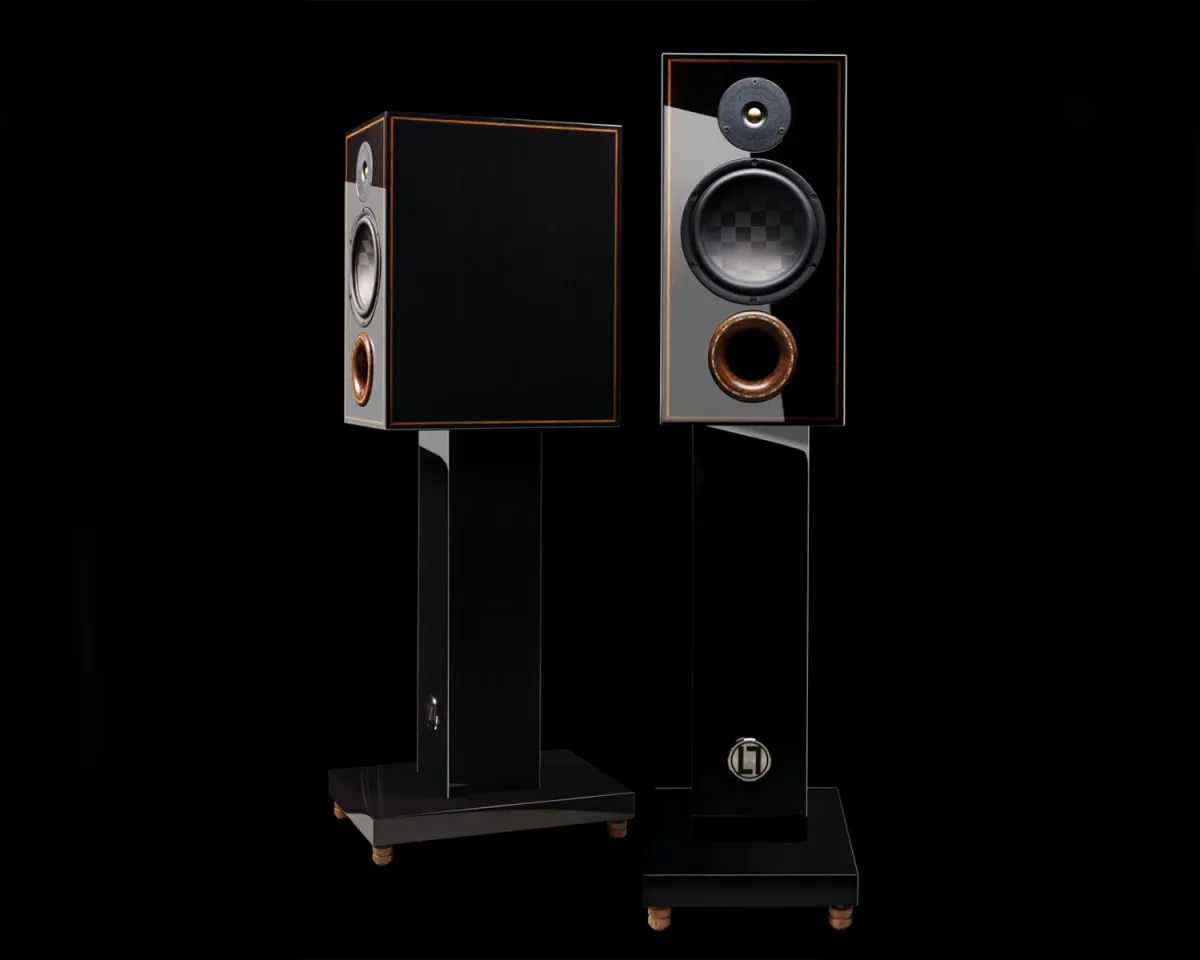

Lorenzo Audiolabs LM5
Image source — © Lorenzo Audiolabs
Model name
LM5
Frequency Response low +/- 3dB (Hz)
33
Frequency Response high +/- 3dB (Hz)
25 000
Sensitivity (dB at 1 W/1m)
88
Impedance (Ohms)
8
Power amplifier requirements (W)
30 - 300
Has internal amplification
N/A
Internal amplification power (W)
N/A
Size (sm)
111 x 30 x 35
Weight (kg)
26.5
Official link
The low-frequency range is reproduced by a 12-inch driver with an AlNiCo magnetic system and a cellulose diffuser on a fabric suspension. The bass is loaded onto a dual bass reflex port located on the bottom panel. The high frequencies are voiced by an AMT ribbon emitter equipped with an impressive waveguide.
