Bookshelf Speakers — Graham Audio LS5/5
Description, images, technical data and specifications

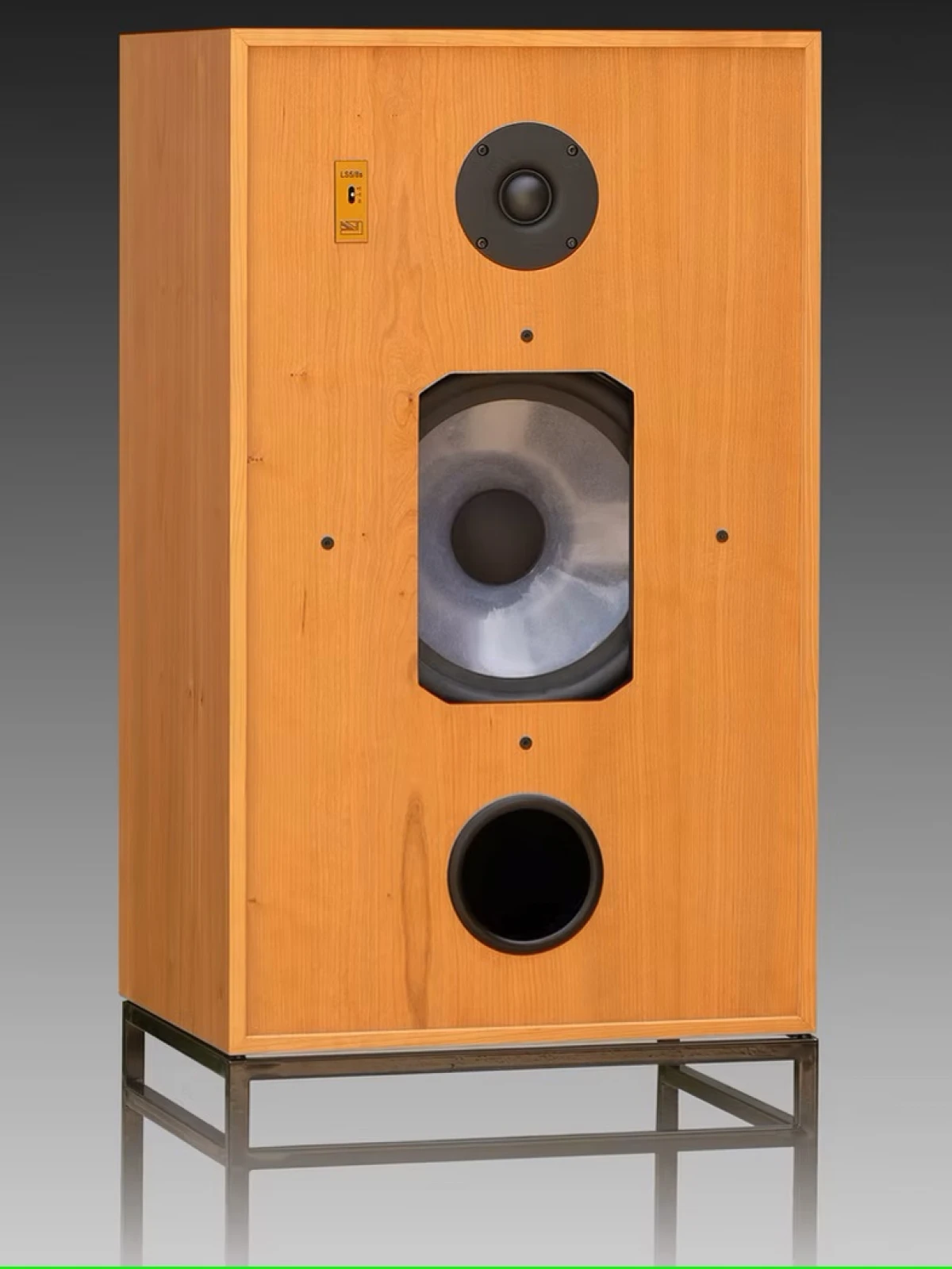

Graham Audio LS5/5
Image source — © Graham Audio
Specifications
Model name
LS5/5
Frequency Response low +/- 3dB (Hz)
40
Frequency Response high +/- 3dB (Hz)
20 000
Sensitivity (dB at 1 W/1m)
88
Impedance (Ohms)
8
Power amplifier requirements (W)
50 - 250
Has internal amplification
N/A
Internal amplification power (W)
N/A
Size (sm)
36 × 65 × 48
Weight (kg)
35.5
Official link
