Bookshelf Speakers — Pylon Audio Opal monitor

Description, images, technical data and specifications

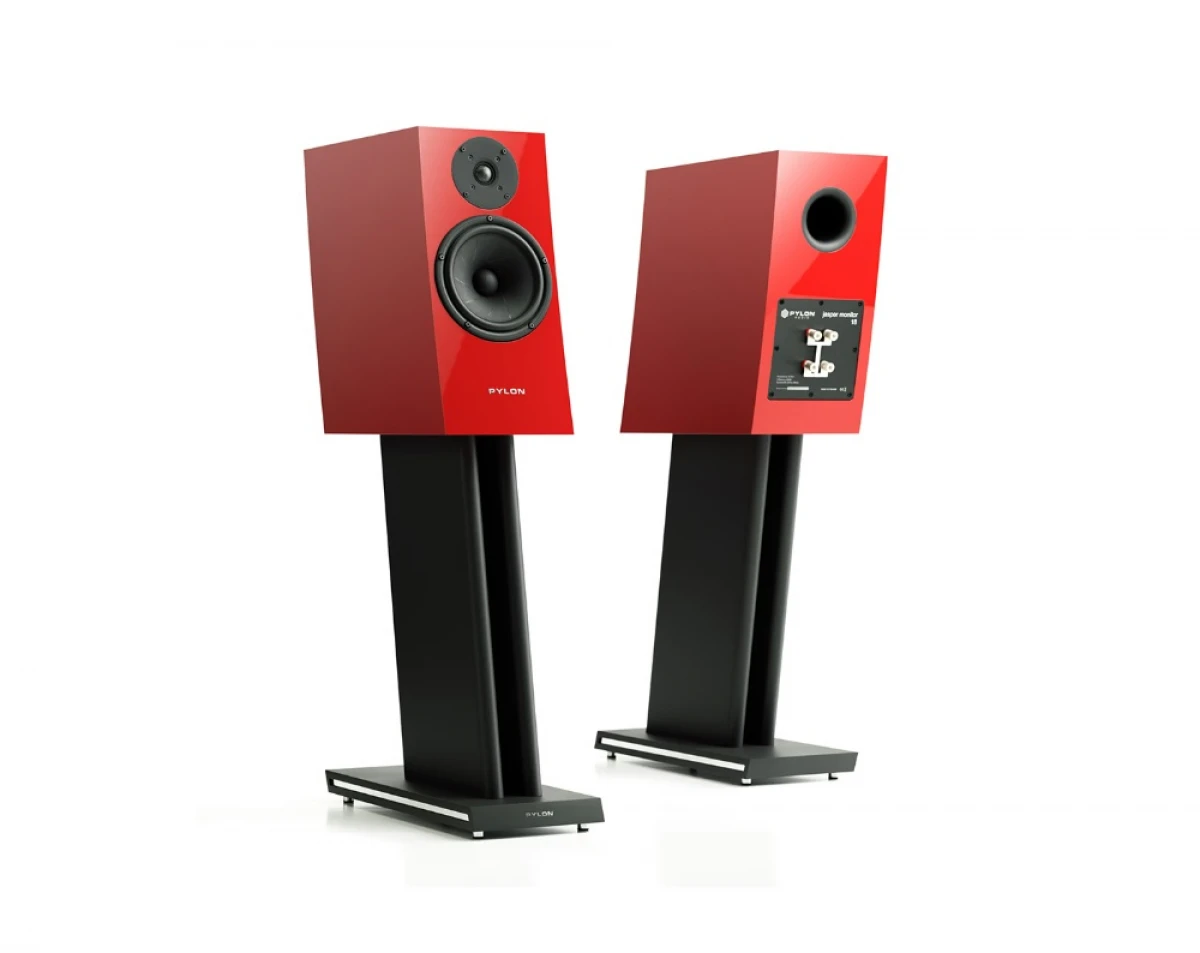

Pylon Audio Opal monitor
Image source — © Pylon Audio

The Opal Monitor bookshelf speakers have a two-way design based on the PSC 18.8 CS/M low-frequency driver. The low-frequency driver has been adapted to work in a smaller enclosure by changing the sensitivity of the suspensions. In the middle frequencies, the paper membrane provides an accurate warmer sound. A 25 mm tweeter with a silk dome is installed in the upper part of the range, which, due to its compact size, allowed the acoustic components to be positioned closer to each other.

Specifications

  • Model name

    Opal monitor

  • Frequency Response low +/- 3dB (Hz)

    45

  • Frequency Response high +/- 3dB (Hz)

    20 000

  • Sensitivity (dB at 1 W/1m)

    86

  • Impedance (Ohms)

    8

  • Power amplifier requirements (W)

    60 - 100

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    19.0 × 40.0 × 28.0

  • Weight (kg)

    7.5

  • Official link

    https://pylon.pl/en/opal-series/opal-monitor/
