Bookshelf Speakers — ProAc Response DB1

Description, images, technical data and specifications

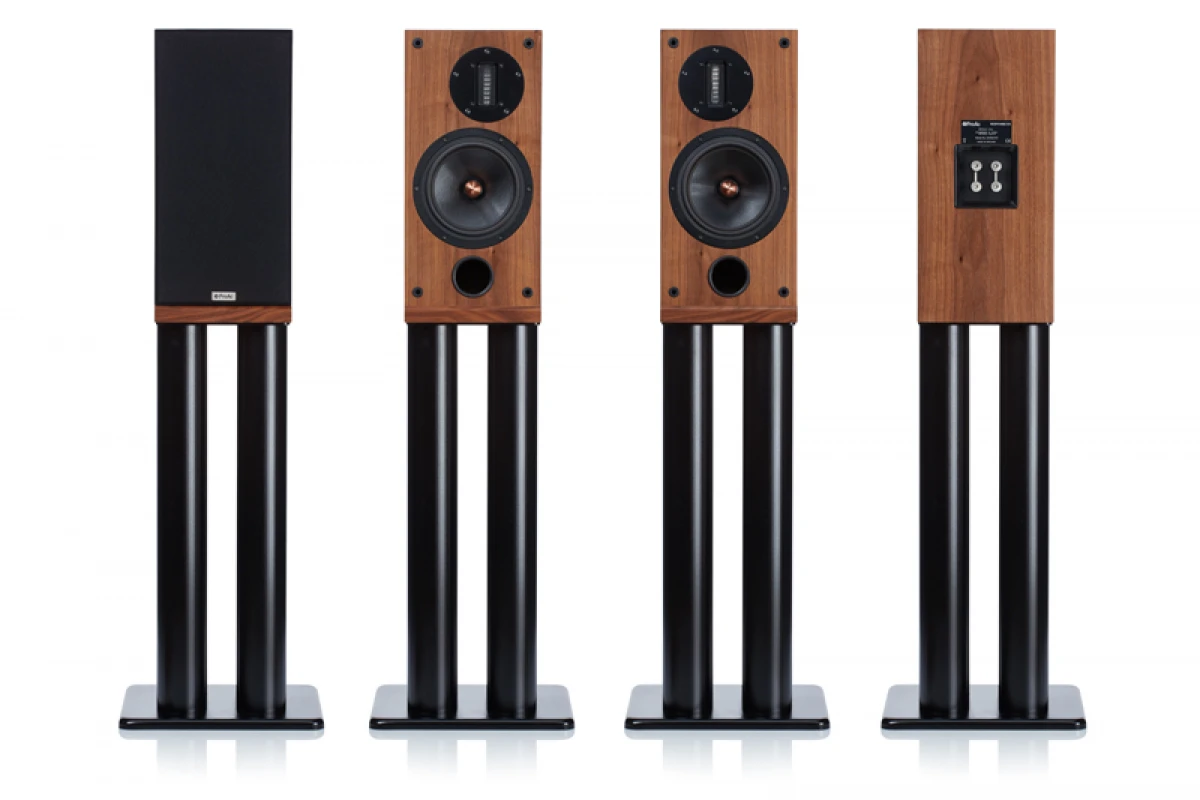

ProAc Response DB1
Image source — © ProAc

The D1 speaker housings are made slightly narrower compared to the Response 1SC, which makes it possible to more effectively combat phase distortion and improve sound dispersion. The new damping material used made the case heavier and more acoustically inert. The new low-frequency drivers are similar to those used in the Response D Two model, have a massive profiled basket and a diffuser made of the same woven material.

Specifications

  • Model name

    Response DB1

  • Frequency Response low +/- 3dB (Hz)

    35

  • Frequency Response high +/- 3dB (Hz)

    30 000

  • Sensitivity (dB at 1 W/1m)

    87.5

  • Impedance (Ohms)

    8

  • Power amplifier requirements (W)

    20 - 100

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    32.0 × 18.2 × 28.0

  • Weight (kg)

    8.8

  • Official link

    https://www.proac-loudspeakers.com/products/response-db1/
