Floorstanding loudspeakers — Magico A5

Description, images, technical data and specifications

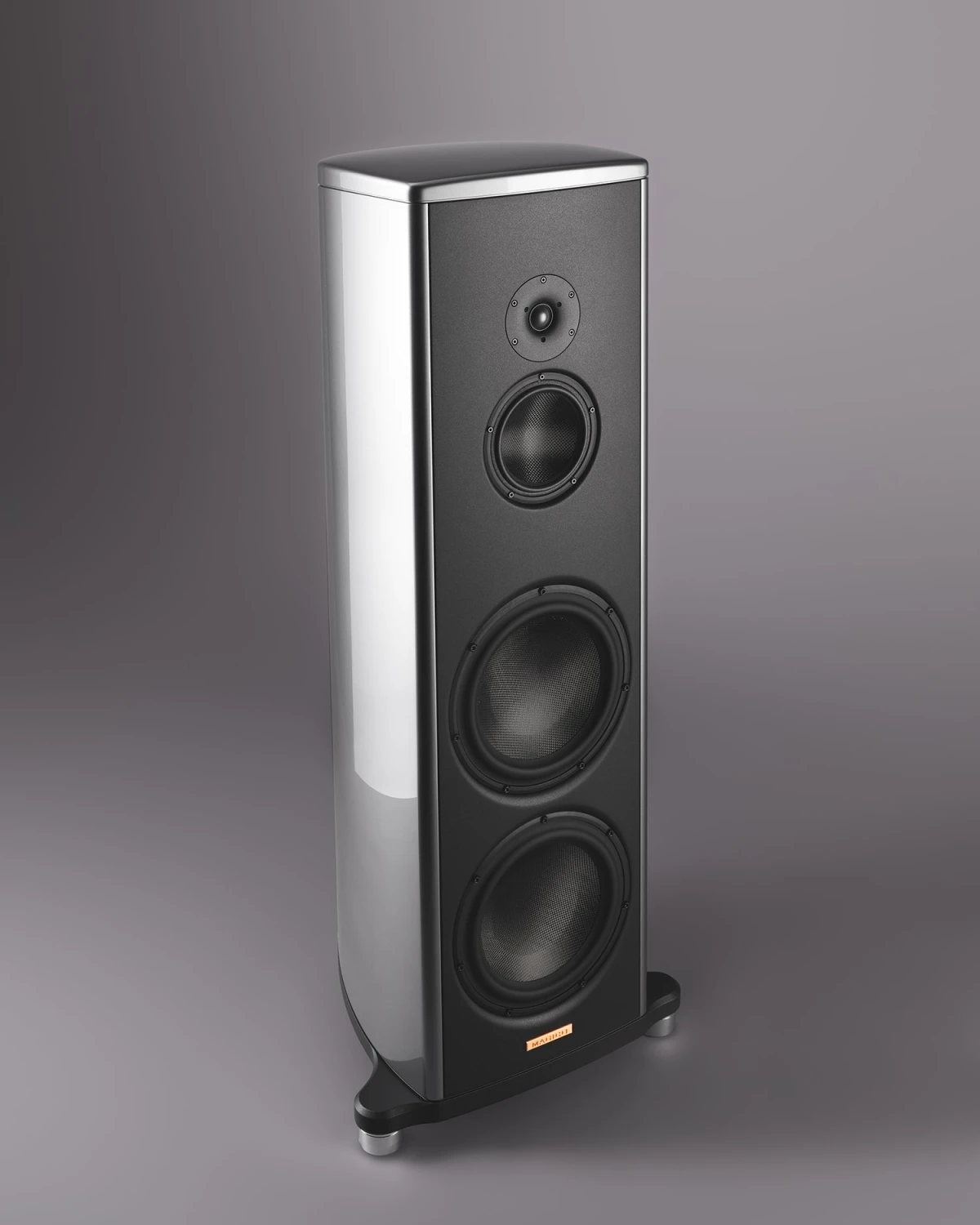

Magico A5
Image source — © Magico

The front panel of the A5 acoustics is studded with radiators from the bottom to the very top — in addition to the midrange, three 9-inch basslines and a 28-mm treble are also used in the design. The basses use a sandwich membrane made of graphene and other materials, which provides very high rigidity. Their titanium coil is large, 5-inch, creates a stable magnetic field, which allows the bass to produce a sound pressure of 115 dB at a distance of a meter at 50 Hz with minimal distortion.

Specifications

  • Model name

    A5

  • Frequency Response low +/- 3dB (Hz)

    24

  • Frequency Response high +/- 3dB (Hz)

    50000

  • Sensitivity (dB at 1 W/1m)

    88

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    50 - 1000

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    26.67 × 37.85 × 113.66

  • Weight (kg)

    81.65

  • Official link

    https://www.magicoaudio.com/a-series-a5

Magico A3

More components

  • A3

    Floorstanding loudspeakers

    Magico A3

    The model features a 28mm beryllium dome tweeter based on the platform and geometry of the M-Project tweeter. Together with Twitter, 152-mm midrange speakers with a MultiWall membrane consisting of carbon fiber coated with nanographene NG are working. NanoTec membranes of the eighth generation, developed by Magico, are installed in two 178 mm low-frequency speakers.

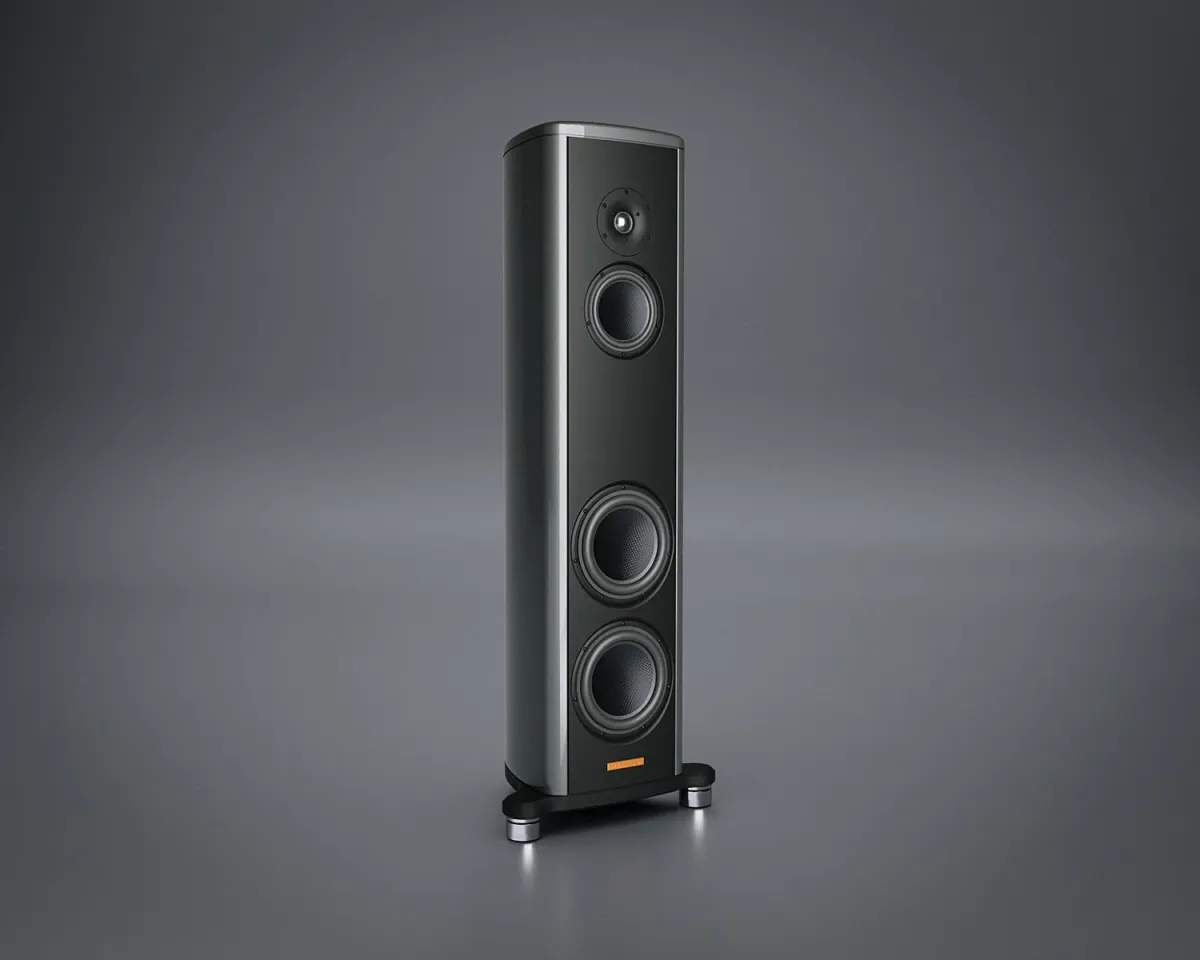

  • S2

    Floorstanding loudspeakers

    Magico S2

    The Magico S2 is a 3-way floorstanding loudspeaker with four drivers. It includes a 1.1-inch (28 mm) diameter tweeter made of pure diamond-coated beryllium, a 5-inch diameter midrange driver, and two 7-inch diameter low-frequency drivers.

  • S3 2023

    Floorstanding loudspeakers

    Magico S3 2023

    The new S3 branded tweeter is equipped with a 28mm diamond-coated beryllium diaphragm. Its design is almost the same as that of the flagship M9 model — the rigidity of the thin 28-millimeter beryllium dome is increased by applying a diamond coating several microns thick.

  • S5 2024

    Floorstanding loudspeakers

    Magico S5 2024

    A 1-inch diamond-coated beryllium diaphragm tweeter with consistent sensitivity, wide band, and overload capability is responsible for the high frequencies of the model. A reliable moving system and a high-pitched sound coil reduce distortion and make it more convenient to "stitch" with a midrange speaker.

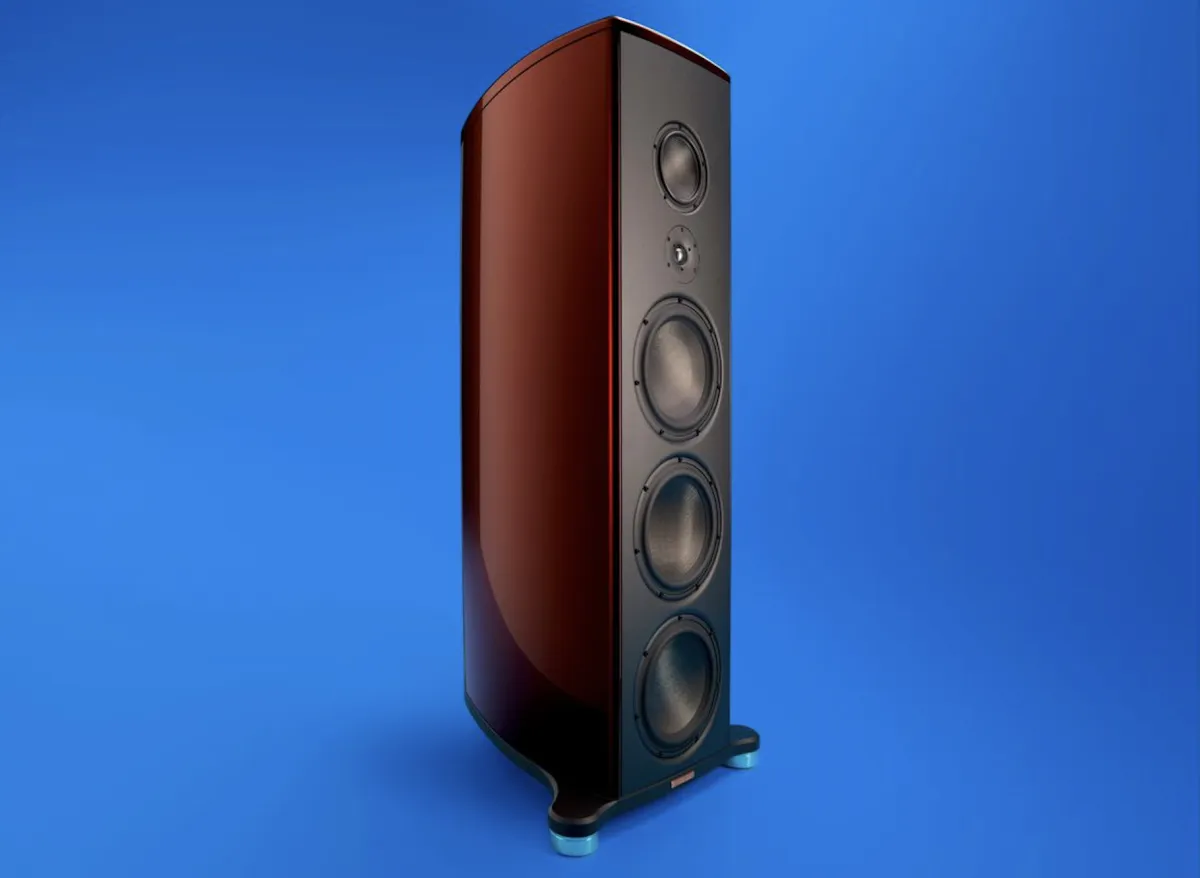

  • S7

    Floorstanding loudspeakers

    Magico S7

    The S7 features three 10-inch bass speakers with an extremely powerful magnetic system and ultra-rigid aluminum diffusers capable of reproducing deep and powerful bass frequencies with high accuracy and speed. The sound coil has a large linear stroke (1.5 cm) and allows for clear and undistorted sound at levels up to 120 dB (50Hz/1m).
