Floorstanding loudspeakers — PS Audio Aspen FR20

Description, images, technical data and specifications

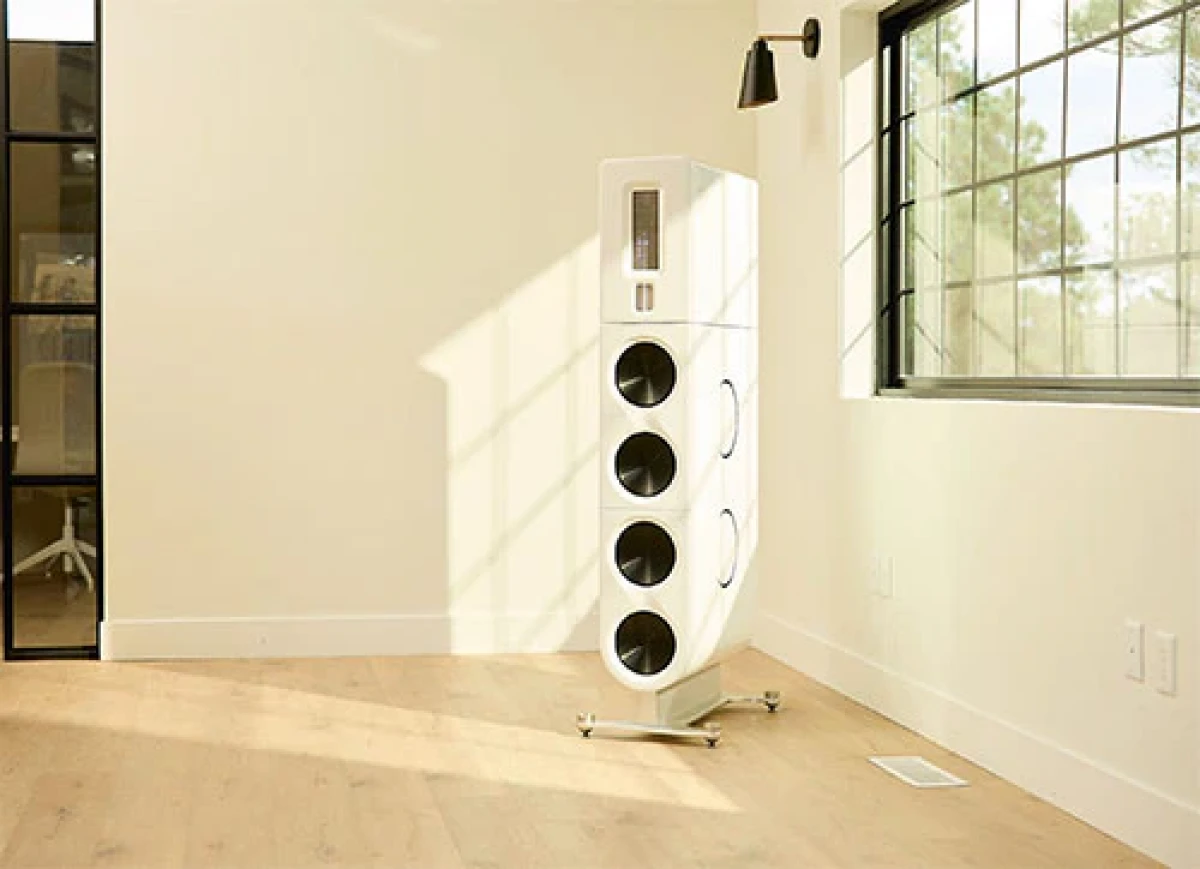

PS Audio Aspen FR20
Image source — © PS Audio

The acoustics have a three-way design, two passive drivers with a diameter of 10 inches on the side panels are used as acoustic decoration. The high frequencies are assigned to a 2.5-inch planar driver with a diaphragm made of Tenax material, and in the middle there is another planar driver with a diaphragm made of the same material, but already 10 inches in size.

Specifications

  • Model name

    Aspen FR20

  • Frequency Response low +/- 3dB (Hz)

    23

  • Frequency Response high +/- 3dB (Hz)

    20 000

  • Sensitivity (dB at 1 W/1m)

    87

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    50 - 300

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    128.27 × 40.6 × 47.6

  • Weight (kg)

    60.3

  • Official link

    https://www.psaudio.com/products/aspen-fr20-loudspeaker/

PS Audio Aspen FR30

PS Audio Aspen FR10

More components

  • Aspen FR10

    Floorstanding loudspeakers

    PS Audio Aspen FR10

    The Aspen FR10 speakers from PS Audio are just over 1 meter high and 20 cm wide, but they weigh an impressive 34 kg. The novelty is equipped with a new 8-inch midrange driver and uses solutions developed for the flagship Aspen FR30 in a more compact form factor. Combined with the same tweeter as in the older models, a 2.5–inch planar driver with a Teonex diaphragm, the Aspen FR10's sound pattern is largely similar to that of the older models in the series.

  • Aspen FR30

    Floorstanding loudspeakers

    PS Audio Aspen FR30

    The Aspen FR30 is a system consisting of a pair of 2.5—inch planar magnetic RF drivers with a Teonex diaphragm, a 10-inch midrange with a similar diaphragm, and four 8-inch bass drivers with an aluminum diffuser.
