Floorstanding loudspeakers — ELAC Expression ESL 13A

Description, images, technical data and specifications

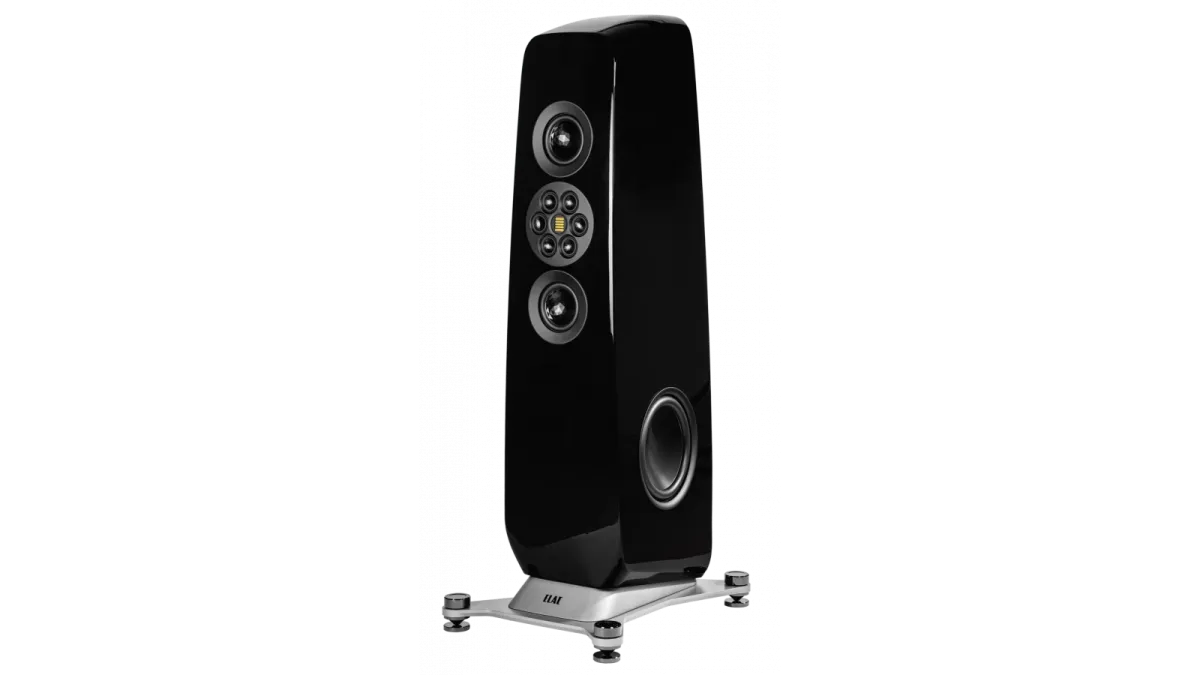

ELAC Expression ESL 13A
Image source — © ELAC

The main part of the frequency spectrum of this model — above 300 Hz — is processed by XStat CLS electrostatic converters with a width of 13 inches (about 325 mm). They implement a number of well-known Martin Logan technologies. The CLS panels (Curvilinear Line Source) used in the Martin Logan Expression SL 13A, as in all MartinLogan electrostatic speakers, optimize the transmission of high-frequency information and stereo panoramas.

Specifications

  • Model name

    Expression ESL 13A

  • Frequency Response low +/- 3dB (Hz)

    24

  • Frequency Response high +/- 3dB (Hz)

    23 000

  • Sensitivity (dB at 1 W/1m)

    91

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    20 - 600

  • Has internal amplification

    Yes

  • Internal amplification power (W)

    2 × 300 + 2 × 600

  • Size (sm)

    156.1 x 33.9 x 69.9

  • Weight (kg)

    46.8

  • Official link

    https://www.martinlogan.com/en/product/expression-esl-13a
