Floorstanding loudspeakers — Marten Design MINGUS Orchestra

Description, images, technical data and specifications

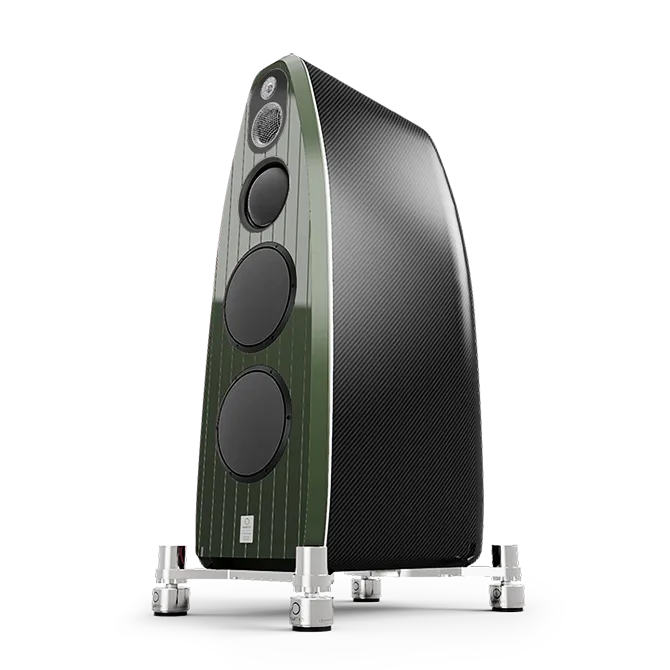

Marten Design MINGUS Orchestra
Image source — © Marten Design

Mingus Orchestra uses the market-leading first-order crossover. Combined with the drivers from Accutron, this creates perfect timing, as well as perfect timing and phase consistency. The result is record-low distortion, providing the most natural and dynamic sound.

Specifications

  • Model name

    MINGUS Orchestra

  • Frequency Response low +/- 3dB (Hz)

    22 (+-2dB)

  • Frequency Response high +/- 3dB (Hz)

    100 000 (+-2dB)

  • Sensitivity (dB at 1 W/1m)

    89

  • Impedance (Ohms)

    6

  • Power amplifier requirements (W)

    450

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    33.5 x 173 x 54

  • Weight (kg)

    130

  • Official link

    https://www.marten.se/products/mingus/mingus-orchestra/
