Floorstanding loudspeakers — Magico s2

Name: s2
Brand: Magico
Rating: 100 (1 reviews)

Description, images, technical data and specifications

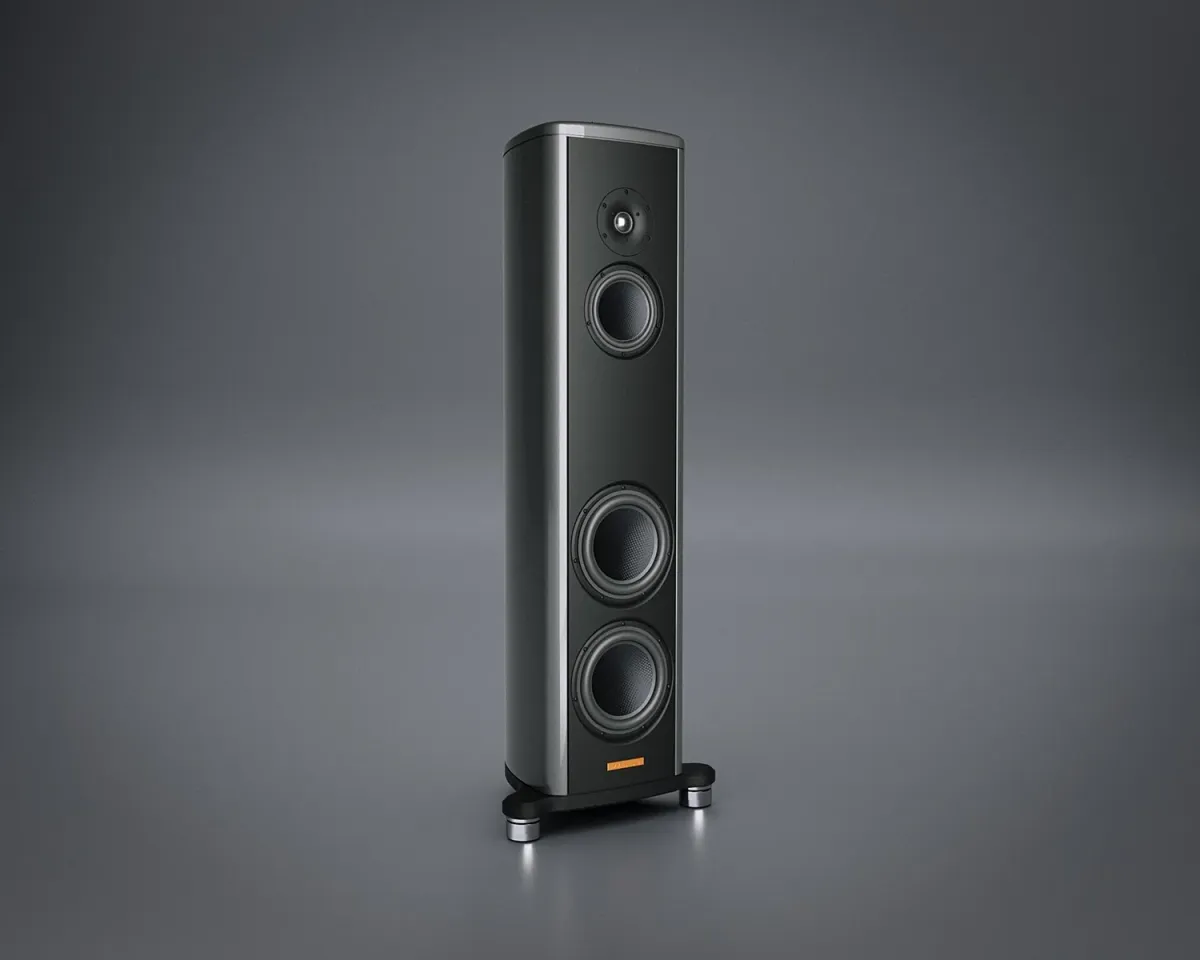

Magico s2
Image source — © Magico

Magico S2 offers a 5” midrange driver with a 75 mm voice coil. This unit has a Gen 8 Nano-Tec cone and is built into a third-generation chassis. The midrange driver uses a neodymium-based motor system with two extra-large magnets to create a super-stabilized magnetic field in a 16 mm air gap. Bass is handled by a pair of 7” woofers, featuring 3” Gen 8 Nano-Tec cone voice coils, housed in a third-generation chassis. The speakers produce accurate, distortion-free low frequencies, with a great maximum sound pressure of 109 dB at 55 Hz.

The S2's sophisticated 28 mm tweeter is based on the flagship M9 model and uses a diamond-coated beryllium diaphragm. The S2's treble - extending to a stunning 50 kHz - is detailed yet subtle, revealing high frequencies that are indicative of information extraction.

The S2's three-way elliptical symmetrical crossover (ESXO) is a topology of rare distinction. The crossover is implemented with an acoustic slope of 24 dB and uses a Linkwitz-Riley filter.

Specifications

Model name
S2
Frequency Response low +/- 3dB (Hz)
35
Frequency Response high +/- 3dB (Hz)
50000
Sensitivity (dB at 1 W/1m)
86.5
Impedance (Ohms)
4
Power amplifier requirements (W)
50 - 300
Has internal amplification
N/A
Internal amplification power (W)
N/A
Size (sm)
110.4 x 34.5 x 39.5
Weight (kg)
60
Official link
https://www.magicoaudio.com/s-series
