Floorstanding loudspeakers — T+A Solitaire S 540

Description, images, technical data and specifications

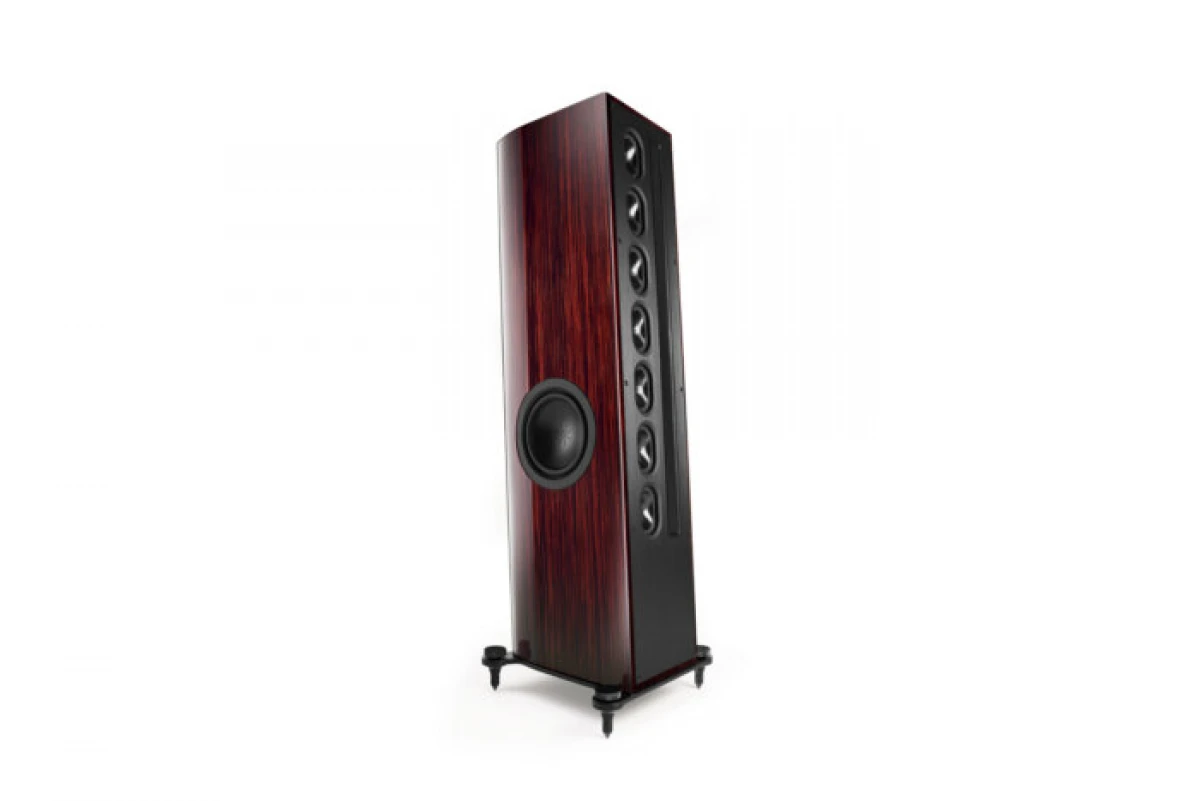

T+A Solitaire S 540
Image source — © T+A

Solitaire S 540 includes an unprecedented set of unique top-level technologies. The Mag850 proprietary magnetostat, powered by 64 high-efficiency magnets, is 85 cm long and extends along the front panel of the case, and seven elliptical StarStabilizer midrange speakers process the frequency range from 150 to 2000 Hz.

Specifications

Model name
Solitaire S 540
Frequency Response low +/- 3dB (Hz)
20
Frequency Response high +/- 3dB (Hz)
45 000
Sensitivity (dB at 1 W/1m)
88
Impedance (Ohms)
4
Power amplifier requirements (W)
300
Has internal amplification
N/A
Internal amplification power (W)
N/A
Size (sm)
148 x 32 x 52
Weight (kg)
80
Official link
https://www.ta-hifi.de/en/loudspeakers/solitaire-s/solitaire-s-530-540-floorstanding-speaker/
