Pbn Audio STUDIO REFERENCE 10
Image source — © Pbn Audio

The following drivers are installed in this model: 2 x 254 mm LE10H1 compression drivers (bass), 1 x 76 mm Satori dome compression driver (midrange), 1 x 25 mm SB ring tweeter with beryllium dome.

Specifications

  • Model name

    STUDIO REFERENCE 10

  • Frequency Response low +/- 3dB (Hz)

    35

  • Frequency Response high +/- 3dB (Hz)

    30 000

  • Sensitivity (dB at 1 W/1m)

    92

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    N/A

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    30.4 × 43.1 × 106.6

  • Weight (kg)

    49.9

  • Official link

    https://pbnaudio.com/studio-reference-10-loudspeaker/

Pbn Audio STUDIO REFERENCE 14

Pbn Audio SCANSPEAK B1371

More components

  • SCANSPEAK B1371

    Floorstanding loudspeakers

    Pbn Audio SCANSPEAK B1371

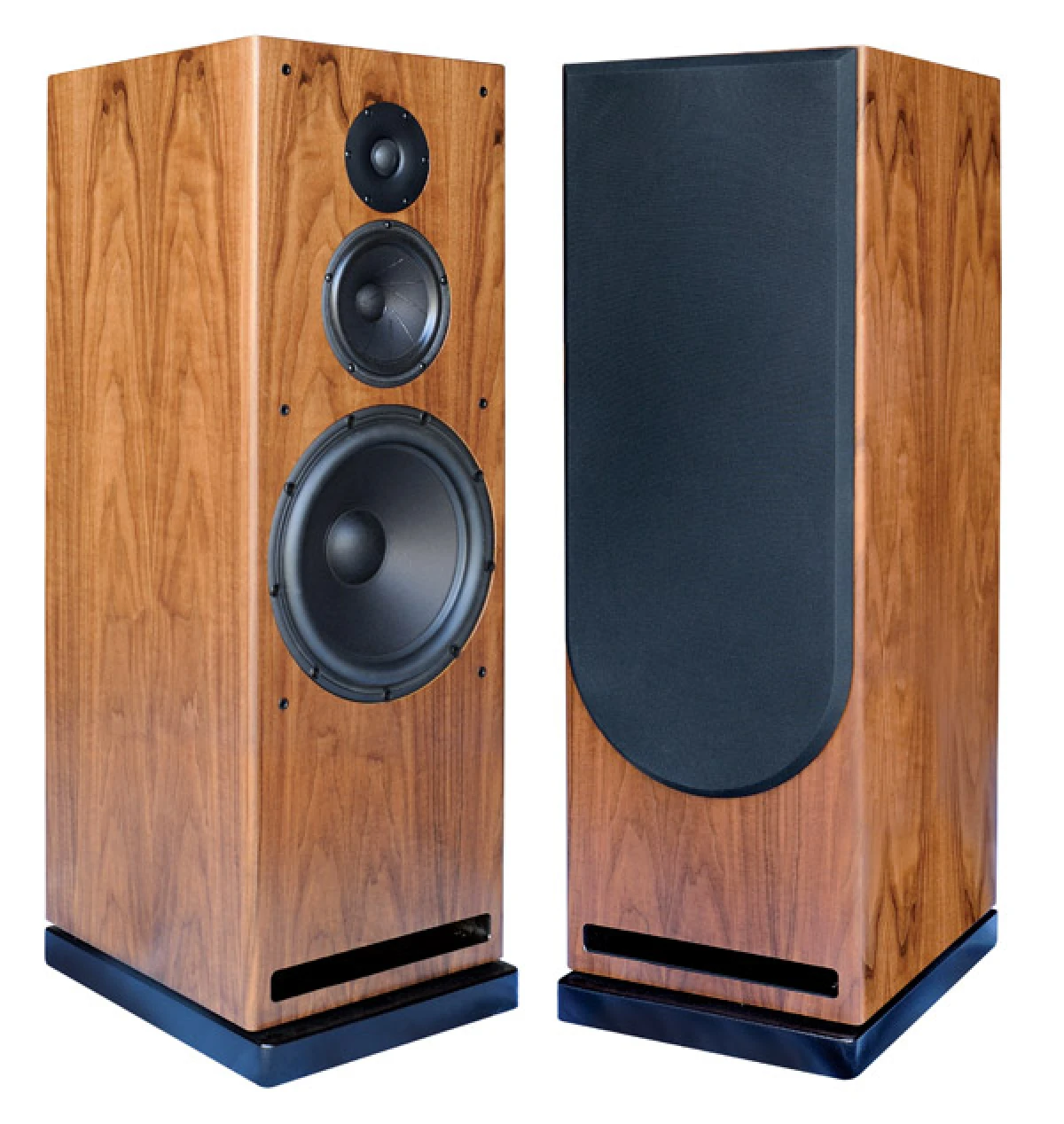

    ScanSpeak B1371 is a self—made speaker kit from PBN Audio. Drivers: D2908/714000 — high-power 8-ohm 1-inch tweeter with beryllium dome, Revelator 18M/4631T00 — midrange driver with sliced paper cone technology and patented symmetrical drive, Revelator 32W/4878T01 — powerful bass driver with 3-inch sound coil and low resonant frequency.

  • STUDIO REFERENCE 14

    Floorstanding loudspeakers

    Pbn Audio STUDIO REFERENCE 14

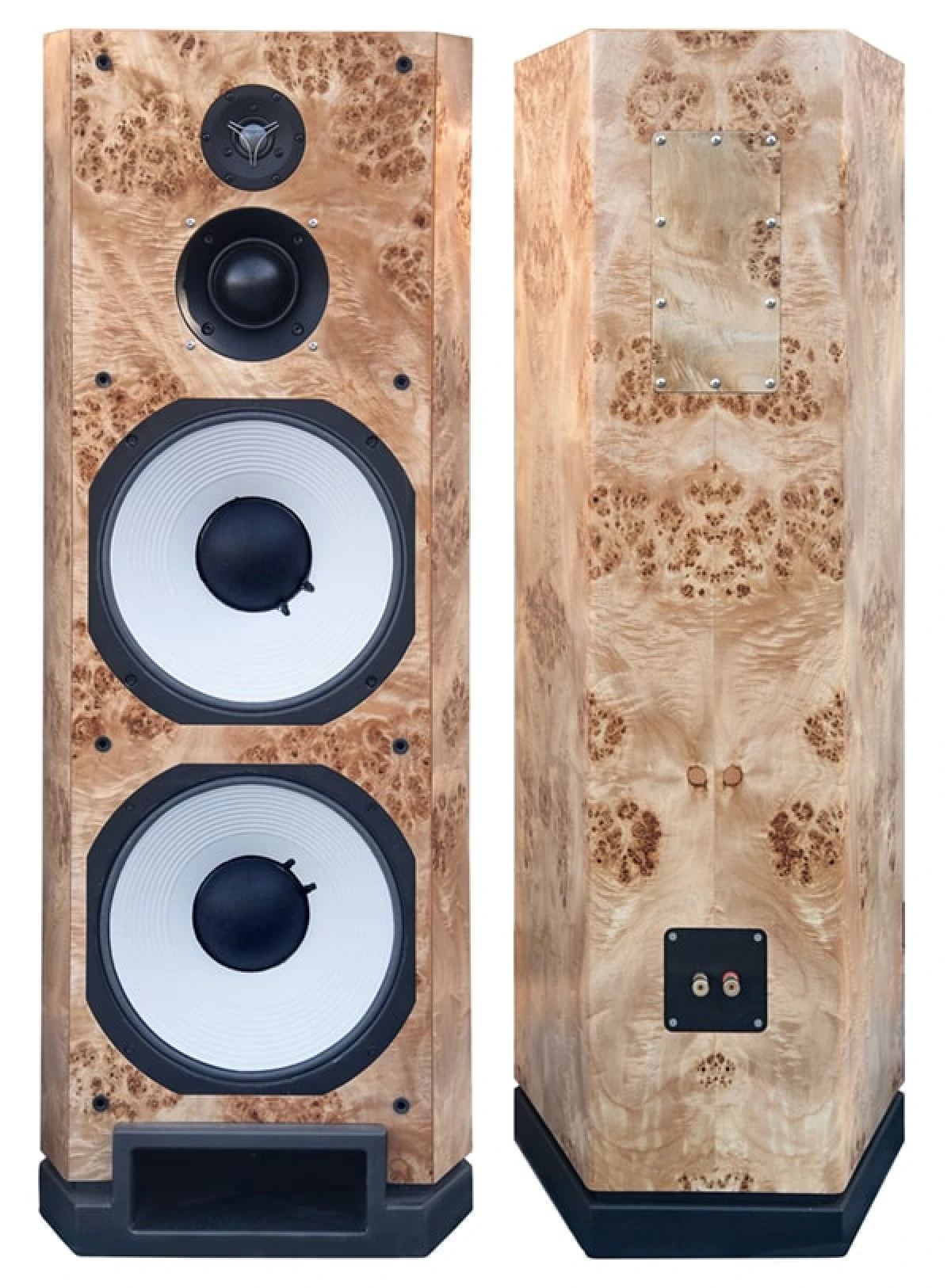

    Replication of classic 1970s three-way phase inversion speakers based on carefully restored and improved 14" Aquaplas coated bass drivers. The medium frequencies are reproduced by a domed 3" midrange emitter with a powerful ceramic magnet, and a 1" tweeter with a beryllium dome operates in the high frequency range.

  • MR!X

    Floorstanding loudspeakers

    Pbn Audio MR!X

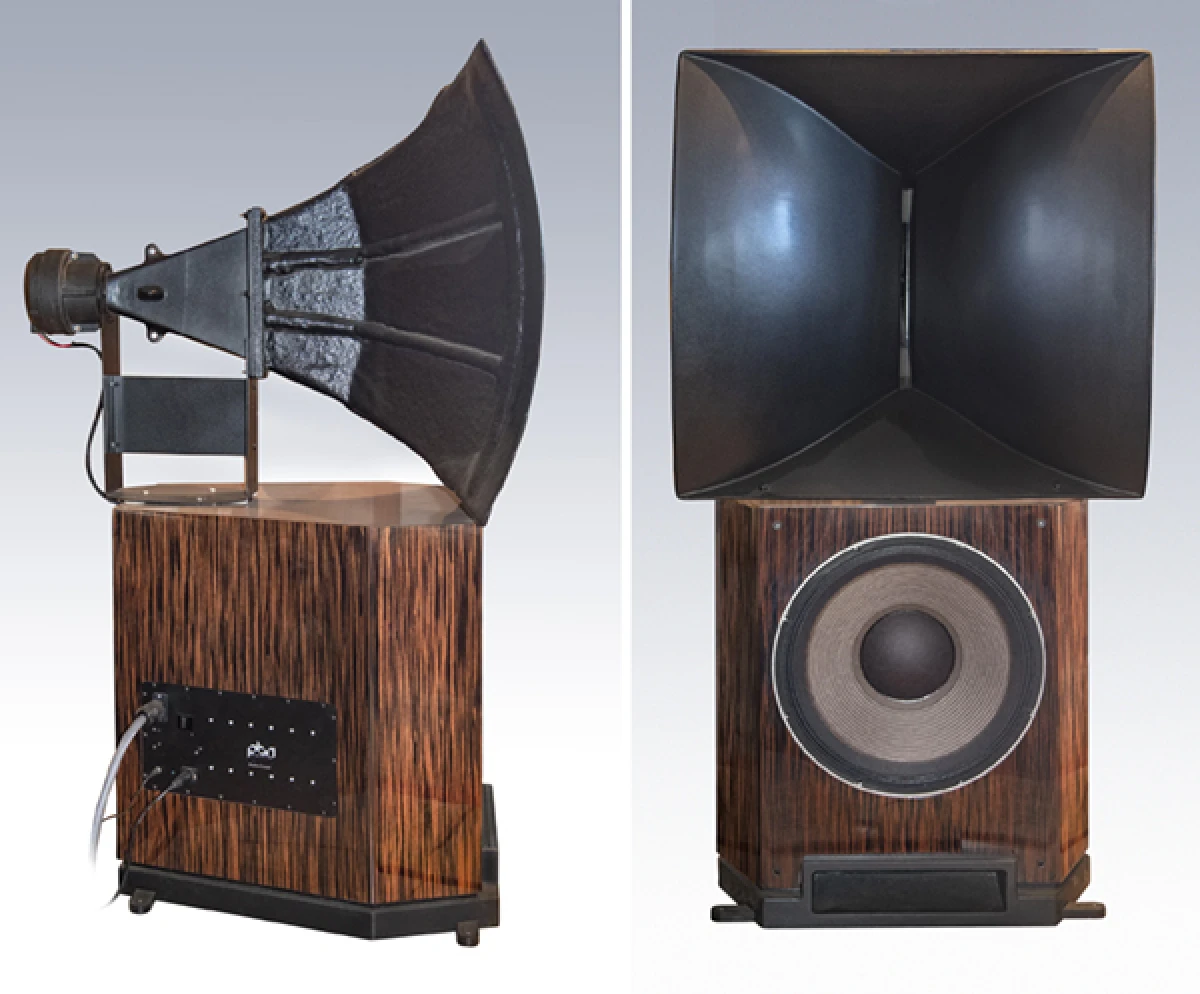

    PBN Audio MR!The X is a speaker system that combines classic vintage components with the best modern parts. This model uses a 2360 biradial horn, a 2452 SLH compression driver with an Aquaplas-coated diaphragm, and an 18-inch 2268-H woofer.

  • M0!5

    Floorstanding loudspeakers

    Pbn Audio M0!5

    PBN Audio M0!5 is a floorstanding loudspeaker designed for rooms of relatively modest size. The following drivers are located inside: 2 x 203 mm compression drivers (bass/midrange), 1 x 76 mm ribbon driver.

  • M1!5

    Floorstanding loudspeakers

    Pbn Audio M1!5

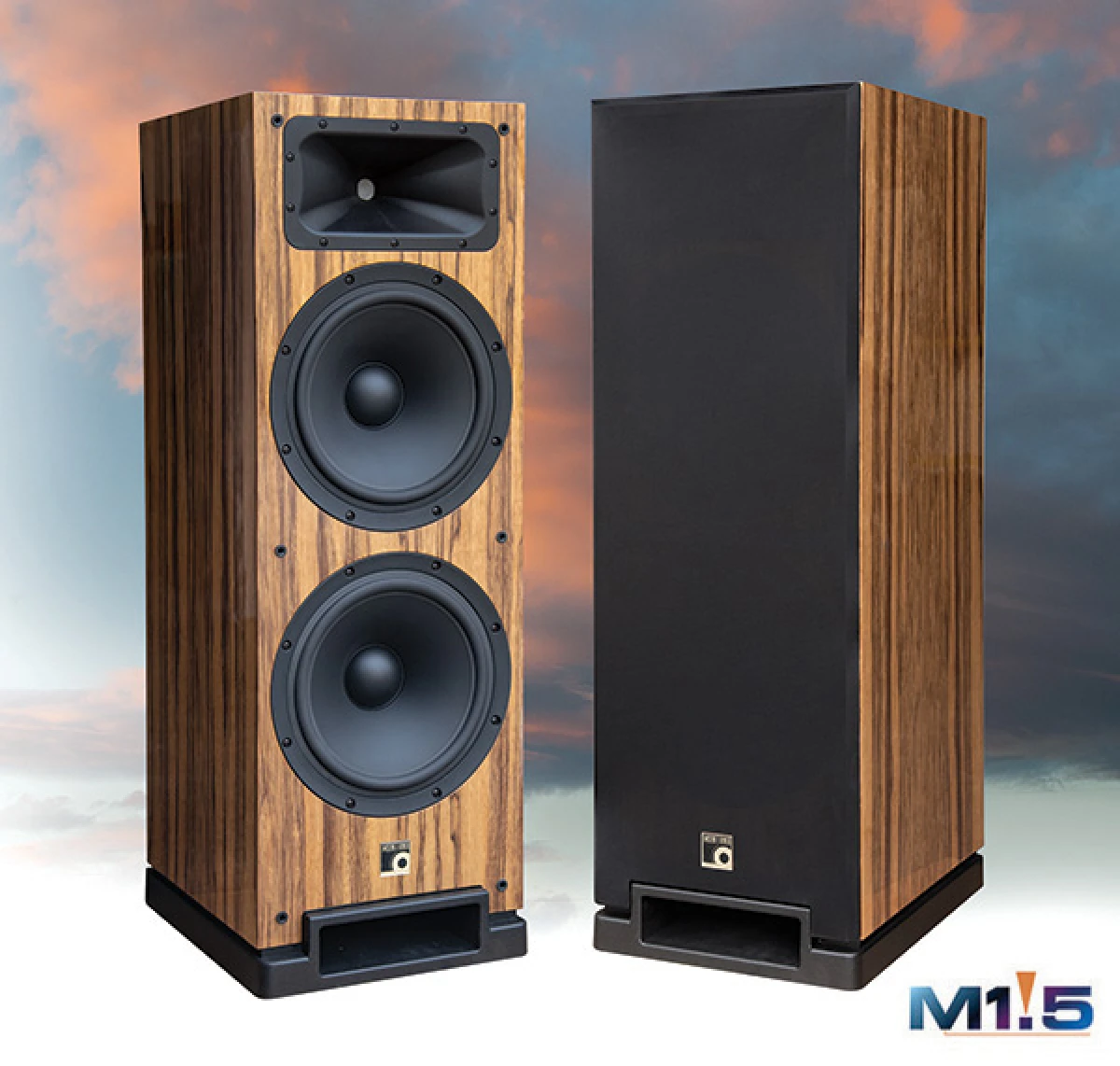

    The PBN Audio M1!5 is an floorstanding loudspeaker with a two-band design and a frequency range from 30 Hz to 25,000 Hz.
