DACs — Pro-Ject DAC Box RS Final Edition
Description, images, technical data and specifications

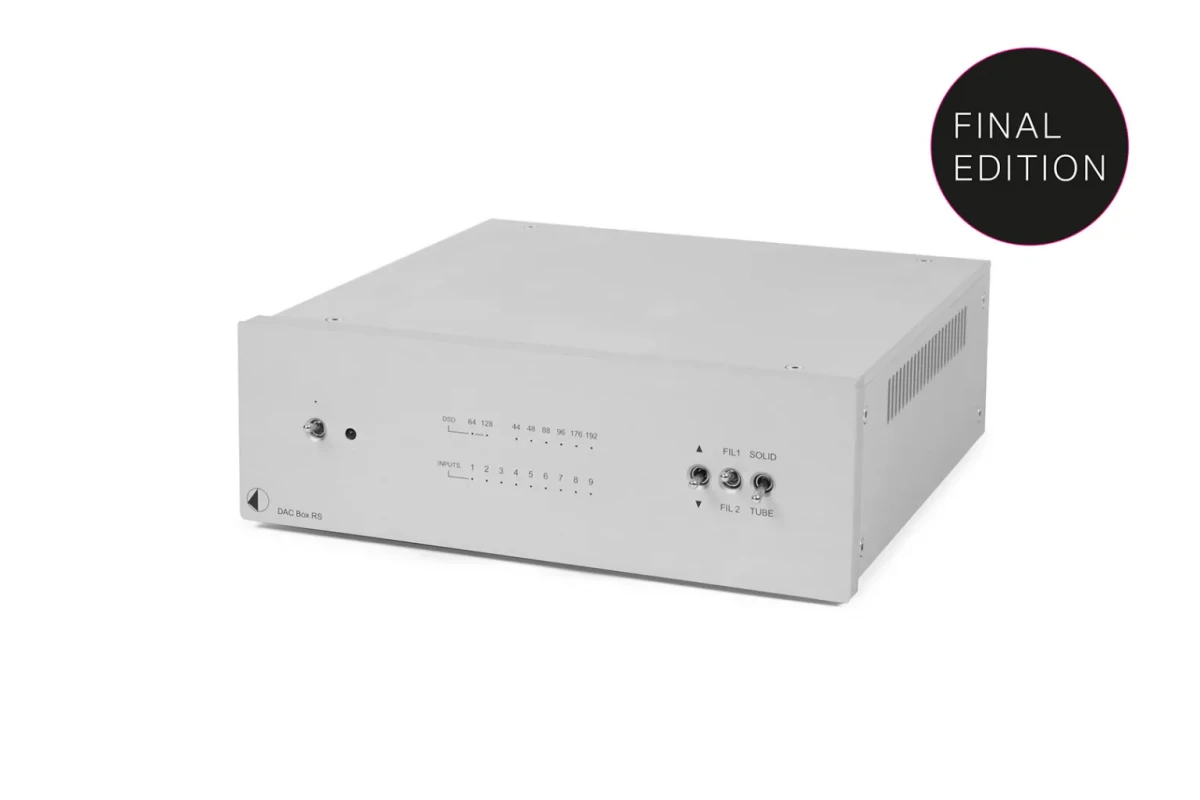

Pro-Ject DAC Box RS Final Edition
Image source — © Pro-Ject
The Pro-Ject Audio DAC Box RS Final Edition DAC offers a rich switching set, which includes an I2S input with Master Clock, a balanced AES/EBU input, an optical Toslink, a coaxial input, and a USB-B port. The DAC is capable of decoding audio in DSD formats up to DSD128 and PCM up to 24 bit/192 kHz (24 bit/96 kHz for the optical input). The new product is based on a pair of Texas Instruments PCM 1792 chips and offers a choice of digital filters. Output stages - ECC88 Diamond selection high-end tube and solid state (switchable).
Specifications
Model name
DAC Box RS Final Edition
Conversion type
8 x Oversampling design
Engine
2 x Texas Instruments PCM 1792
DSD compatability
Yes
Parameters
up to PCM 24/192 and DSD128
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
50000
Gain (dBu)
N/A
Output Level (balanced) (V)
N/A
Output Level (single-ended) (V)
N/A
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
N/A
Output Impedance (single-ended) (Ω)
N/A
Analog outputs
N/A
Signal to Noise Ratio (dB)
100
Total Harmonic Distortion + Noise (% at 22 kHz)
0.005 - 0.25
Dimensions (mm)
206 x 72 x 210
Weight (kg)
1.89
