DACs — TEAC UD-507
Description, images, technical data and specifications
TEAC UD-507
Image source — © TEAC
The TEAC UD-507 supports an asynchronous USB interface that controls the transmission of PCM and DSD data by synchronizing the clock frequency generated by the internal high-precision quartz oscillator UD-507. The TEAC UD-507 offers two types of clock pulses – 44.1 kHz and 48 kHz, each using a separate high-precision quartz oscillator of sound quality with low phase noise minimizing the effect of jitter on the sound quality and fidelity of the original soundtrack.
Specifications
Model name
UD-507
Conversion type
N/A
Engine
N/A
DSD compatability
Yes
Parameters
up to 384kHz / 32-bit and DSD 22.5M
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
70 000
Gain (dBu)
N/A
Output Level (balanced) (V)
N/A
Output Level (single-ended) (V)
N/A
Input Impedance (balanced) (Ω)
50 000
Input Impedance (single-ended) (Ω)
24 000
Output Impedance (balanced) (Ω)
40
Output Impedance (single-ended) (Ω)
20
Analog outputs
Fixed
Signal to Noise Ratio (dB)
105
Total Harmonic Distortion + Noise (% at 22 kHz)
0.01
Dimensions (mm)
290 × 85 × 249
Weight (kg)
4.9
Official link
More components
DACs

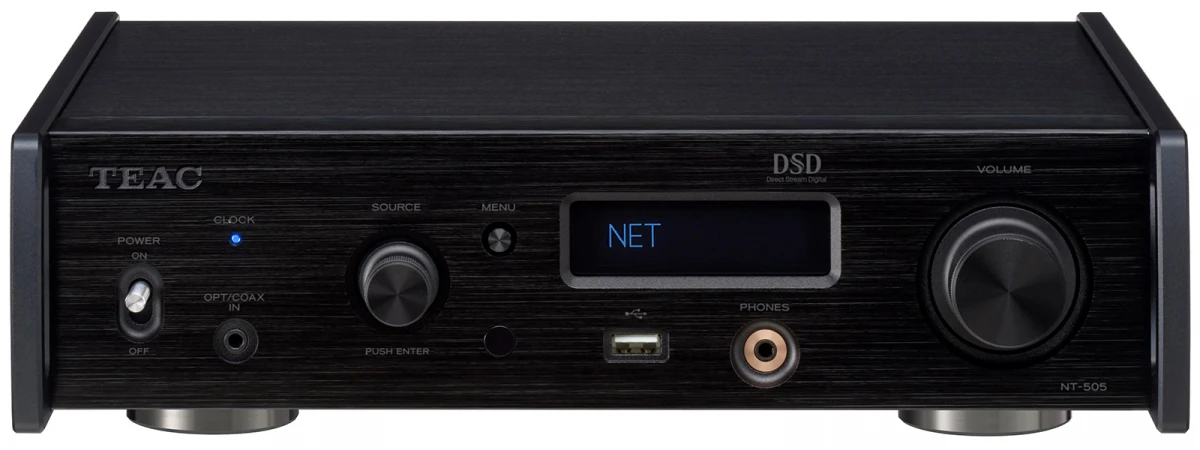

TEAC NT-505-X
