Cartidges — JICO Clipper MM
Description, images, technical data and specifications

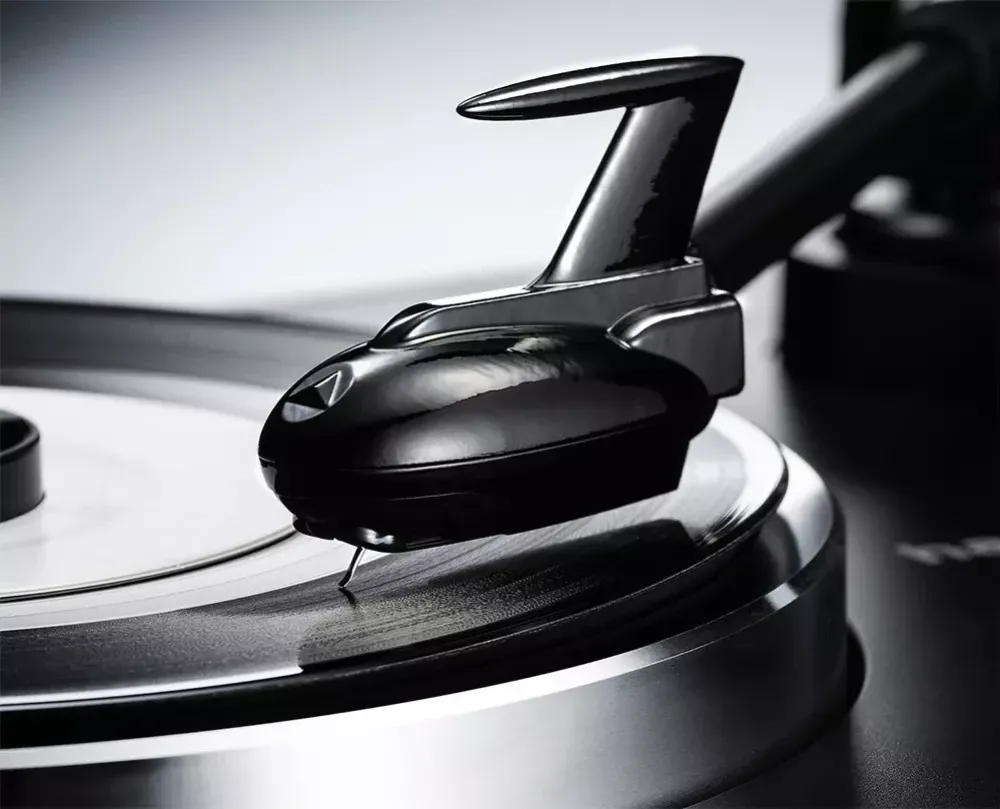

JICO Clipper MM
Image source — © JICO
The JICO Clipper MM cartridge offers a modular design with maximum user flexibility - it is compatible with JICO N44-7, N44G, CRCP/MK1 replacement inserts and SHURE 44-series replacement pickup stylus, including JICO ND (Nude Diamond), SD (Synthetic Diamond), MORITA (Wood Cantilever) and SAS, as well as vintage SHURE pickup stylus.
Specifications
Model name
Clipper MM
Type
MM
Stylus
Diamond
Body
UVCRM resin
Cantilever
Aluminium conical S-shaped cantilever
Coils
N/A
Output voltage (mV@5cm/sec)
5 - 8
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20000
Internal impedance (Ohm)
47000
Channel separation (dB / 1,000 Hz)
20
Compliance (×10-6cm/dyne at 100Hz)
4.6 - 5.1
Recommended load (Ohm)
N/A
Recommended tonearms
Medium
Weight (g)
16.7
